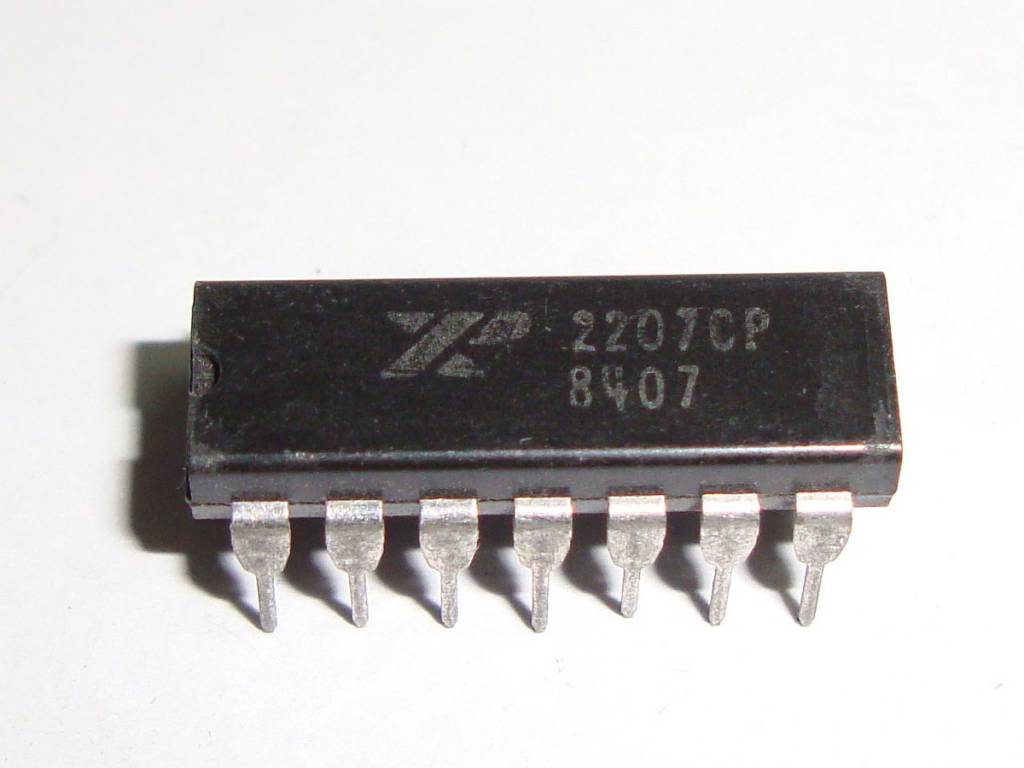

XR2207 IC

XR2207 Voltage Controlled Oscillator IC14

Fr3,000

The XR2207 is a monolithic voltage-controlled oscillator (VCO) integrated circuit featuring excellent frequency
stability and a wide tuning range. The circuit provides simultaneous triangle and squarewave outputs over a
frequency range of 0.01Hz to 1MHz. It is ideally suited for FM, FSK, and sweep or tone generation, as well as for
phase-locked loop applications.

In stock

SKU: CPN7756 Category:

Description

The XR2207 has a typical drift specification of 20ppm/°C. The oscillator frequency can be linearly swept over a
1000:1 range with an external control voltage; and the duty cycle of both the triangle and the squarewave outputs can be varied from 0.1% to 99.9% to generate stable pulse and sawtooth waveforms.

FEATURES

  • Excellent Temperature Stability (20ppm/°C)
  • Linear Frequency Sweep
  • Adjustable Duty Cycle (0.1% to 99.9%)
  • Two or Four Level FSK Capability
  • Wide Sweep Range (1000:1 Minimum)
  • Logic Compatible Input and Output Levels
  • Wide Supply Voltage Range (4V to 13V)
  • Low Supply Sensitivity (0.1% /V)
  • Wide Frequency Range (0.01Hz to 1MHz)
  • Simultaneous Triangle and Squarewave Outputs

APPLICATIONS

  • FSK Generation
  • Voltage and Current-to-Frequency Conversion
  • Stable Phase-Locked Loop
  • Waveform Generation:Triangle, Sawtooth, Pulse, Squarewave
  • FM and Sweep Generation
