Orange Pi 4G-IOT 1G 8GB Support 4G SIM Card Bluetooth Android 6.0 Mini PC COM21

Description

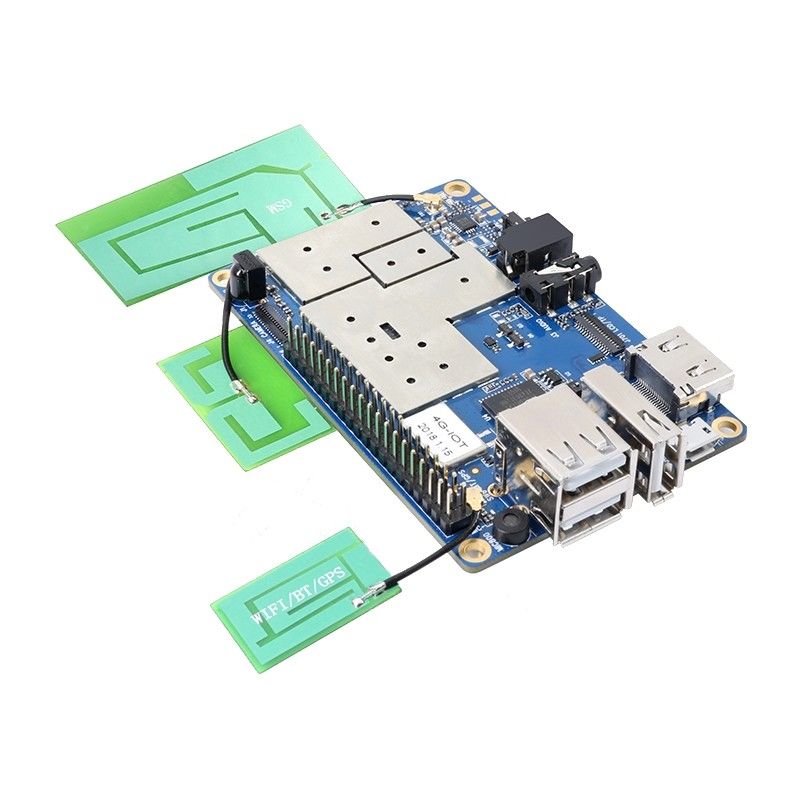

Orange Pi 4G-IoT use the MTK serial of MT6737 SoC with Quad core ARM® Cortex-A53, main frequency up to 1.25GHz, and has 1GB DDR3 SDRAM with 8GB EMMC Flash. It offers a range of different ports, including HDMI output, 40pin headers, USB 2.0, CSI camera port, TF card slot, etc. It can run Android 6.0 Image. Orange Pi 4G-IoT is a simple, fun, useful tool that you can use to start taking control of the world around you.



Specifications
Processor	MT6737
CPU	Quad core ARM® Cortex-A53, Main frequency up to 1.25GHz
GPU	ARM Mali-T720 MP1
Memory	1GB DDR3
Emmc	8GB EMMC Flash
Wireless	WIFI / BT / FM / GPS Four in one
Radio frequency	GSM: 900/1800 (850/1900 optional) WCDMA: B1/B8 (B2/B4/B5 optional) TD-CDMA CDMA2000 FDD-LTE: B1/B3/B7/B20 (B2/B4/B17optional) TDD-LTE: B38/40/41B
Display	HD
Capacitance touch	Support
Camera	13M (25pin ZIF Connector)
Accelerometer Sensor	Support
IR Control	Support (Adapted iDroid remote controller)
Fingerprint Identification	Support
SIM Card	mini Single SIM Card
TF Card	Support hot-plugging
Audio	Earphone: For audio input / output Mic: For audio input
USB	USB Host × 3: Support OTG Micro USB × 1: Only for writing image
LED	Power Indicator LED: Red Status Indicator LED: Green
Key	Power
HDMI	Support
Low-level peripherals	40pin Headers: 1.8V SPI × 2 I2C × 3 UART × 2
Power	DC: 5V 2A Battery: Connection through a weld plate
OS	Android 6.0
Programming support	C, C++, Kotlin, Java, Shell, Python

Important Features

The Orange Pi 4G-IoT has different wireless technology capabilities. Here’s a comparison of its wireless features:

1. Cellular Connectivity: The Orange Pi 4G-IoT board has built-in 4G LTE connectivity, allowing it to connect to cellular networks. This feature enables the board to be used in applications that require remote connectivity or mobile data access.
2. Wi-Fi: The board supports Wi-Fi connectivity, allowing it to connect to wireless local area networks (WLANs). This enables the board to communicate with other devices or access the internet wirelessly.
3. Bluetooth: The Orange Pi 4G-IoT board has Bluetooth support, enabling it to connect and communicate with Bluetooth-enabled devices such as keyboards, mice, speakers, or other IoT devices.

What can I do with Orange Pi 4G-IOT?

Build…

• A computer
• A wireless server
• Games
• Music and sounds
• HD video
• A speaker
• Android
• Scratch
• Pretty much anything else, becauseOrange Pi 4G-IOT is open source

Orange Pi 4G-IOT?

Orange Pi 4G-IOT is for anyone who wants to start creating with technology – not just consuming it. It’s a simple, fun, useful tool that you can use to start taking control of the world around you.
