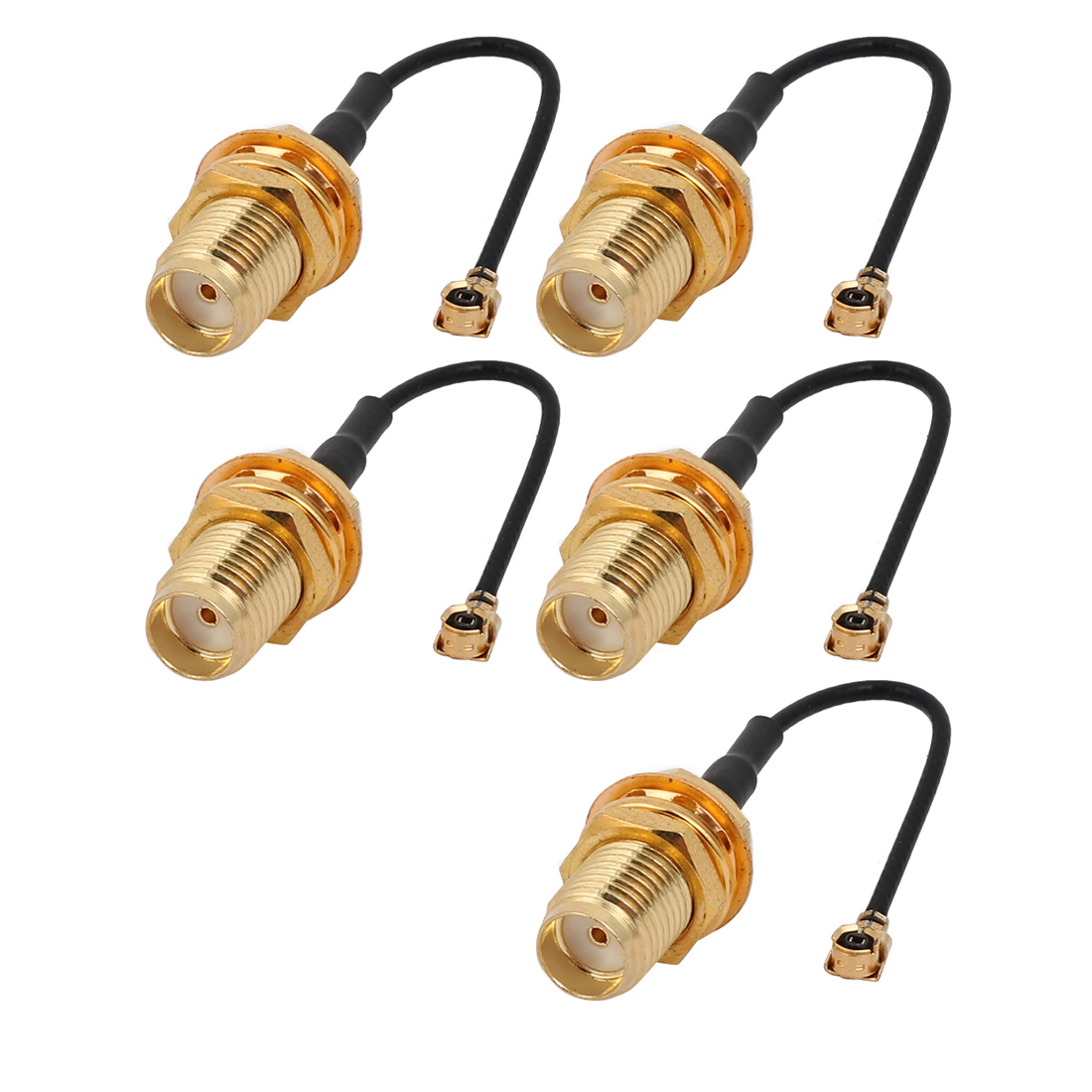

IPEX to SAM Female Socket for Antenna CON33

Description

The IPX-SMA cable is used to connect the external antenna to the cellular communication module. It has female IPX and SMA connectors. As the adapter is 25 cm long, you can either place the antenna connector on the outside of the enclosure or easily install the antenna inside it.

SMA antennas are a diverse group of radio frequency antennas that possess an SMA connector for attachment to a coaxial extension cable or other radio frequency hardware. An SMA connector serves as the primary channel through which radio frequency signals can flow between the antenna and the device it is attached to.

Specifications

• Model Number: IPEX to SAM female socket
• Type: Power Management Development Boards and Kits
• Device, PC, GSM, GPRS, GPS
• Help you connect the device with SMA Male Connector and IPX Male Connector.
• Impedance:50Ω
• Temperature:-20℃～+70℃
• VSWR:≤1.5
• Frequency Range:DC～6000MHz
• Package: 1Pcsh

Applications

• Wi-Fi router
• Commercial-Grade Wireless
• phone wireless
• AP
• Bluetooth devices
• PC
• GSM
• GPS

Package includes:
1×IPEX to SAM Female Socket for Antenna
