Description

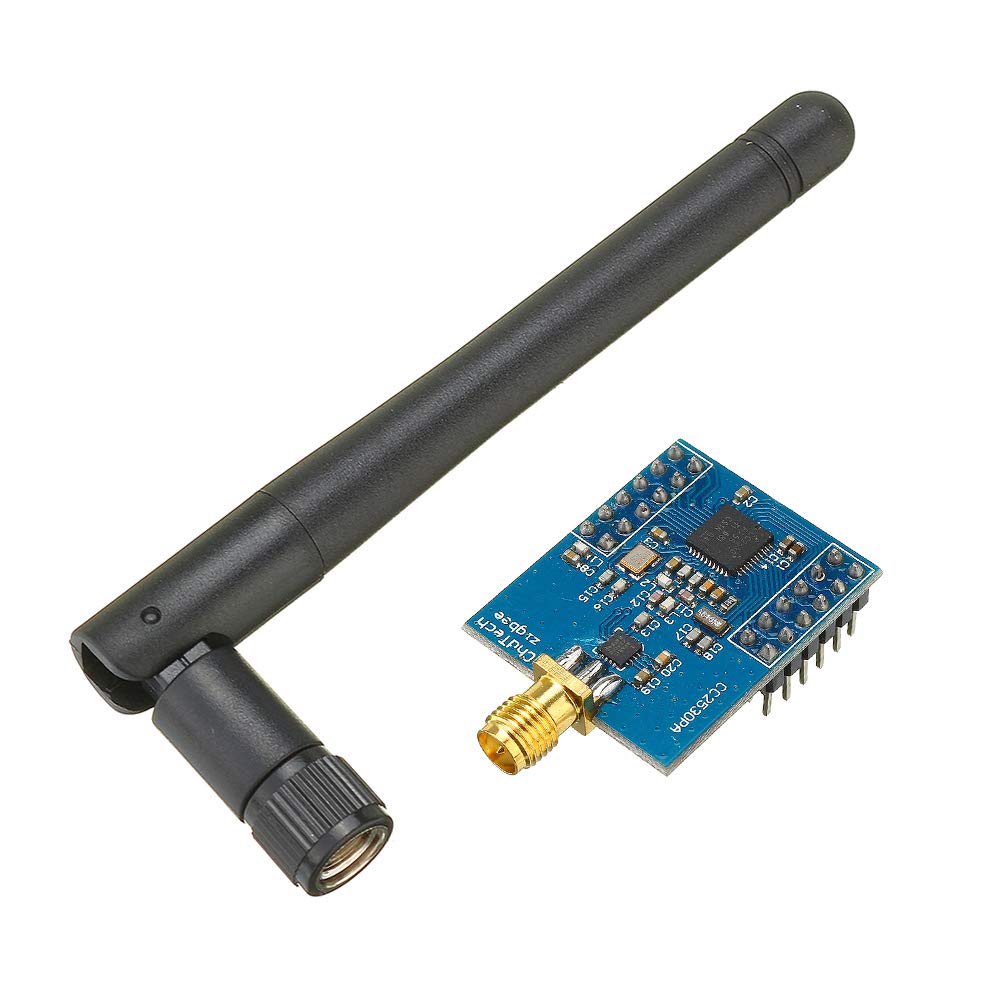

This is a Wireless Core Development Board based on CC2530, which supports Zigbee Protocol. The Module has a 2.4-GHz IEEE 802.15.4 Compliant RF Transceiver, with Excellent Receiver Sensitivity and Robustness to Interference this module has programmable output power up to 4.5 dBm. Made with very few external components, this module supports 2.4-GHz IEEE 802.15.4 systems.
Specifications:
- Operating Voltage (VDC): 3.3
- Operating Current (A): 0.0205
- CPU Core: 8051
- Antenna Type: External
- GPIO: 21
- Operating Temperature (°C): -40 ~ +125
- Frequency Bands: 2394-2507MHz
- Length (mm): 50
- Width (mm): 30
- Height (mm): 10
- Weight (gm): 50
Applications:
- Home/Building Automation.
- Lighting Systems.
- Industrial Control and Monitoring.
- Low-Power Wireless Sensor Networks.
- Consumer Electronics.
- Health Care.
Features:
- 2.4-GHz IEEE 802.15.4 Compliant RF Transceiver.
- Excellent Receiver Sensitivity and Robustness to Interference.
- Programmable Output Power Up to 4.5 dBm.
- Very Few External Components
- 2.4-GHz IEEE 802.15.4 Systems.
