8*8 Mini Dot Matrix LED Display Red Common Cathode Digital Tube 16-pin 60mmx60mm COM53 ,R11

Fr3,500

8*8 Mini Dot Matrix LED Display Red Common Cathode consists of 64 dots or pixels. There is a LED for each pixel and these LEDs are connected to total of 16 pin.

In stock

SKU: DIS14768 Category:

Description

8*8 Mini Dot Matrix LED Display Red Common Cathode consists of 64 dots or pixels. There is a LED for each pixel and these LEDs are connected to total of 16 pin. The one with a label ending with AS is a common Cathode dot matrix.

About 8×8 LED Matrix

With low-voltage scanning, 8×8 LED Matrix LED display have advantages such as power saving, long service life, low cost, high brightness, a wide angle of view, long visual range, waterproofness, and so on. They can meet the needs of different applications and thus have a broad development prospect.

Features
Pixel Color :Red ,Pure
Size:60x60mm
Pixel Diameter :5mm Led Diameter
Type : Common Cathode

Getting started with the 8*8 Mini Dot Matrix LED Display Red Common Cathode Digital Tube 16-pin

In this lesson we are going to interface a single color 8×8 LED matrix with Arduino and display a few characters to experience its charm from the beginning.

Hardware required

  • Arduino UNO
  • 8*8 Mini Dot Matrix LED Display Red Common Cathode
  • Breadboard
  • Jumper wires

Connecting the Hardware

You can identify the pin out diagram of it using the following figure.

Below is the internal structure. You can see that in the common Cathode dot matrix, ROW is the cathode of LED and COL is the anode.

Here’s a matrix of the pin connections, based on the diagram above:

Matrix pin no. Row Column Arduino pin number
1 5 13
2 7 12
3 2 11
4 3 10
5 8 16 (analog pin 2)
6 5 17 (analog pin 3)
7 6 18 (analog pin 4)
8 3 19 (analog pin 5)
9 1 2
10 4 3
11 6 4
12 4 5
13 1 6
14 2 7
15 7 8
16 8 9

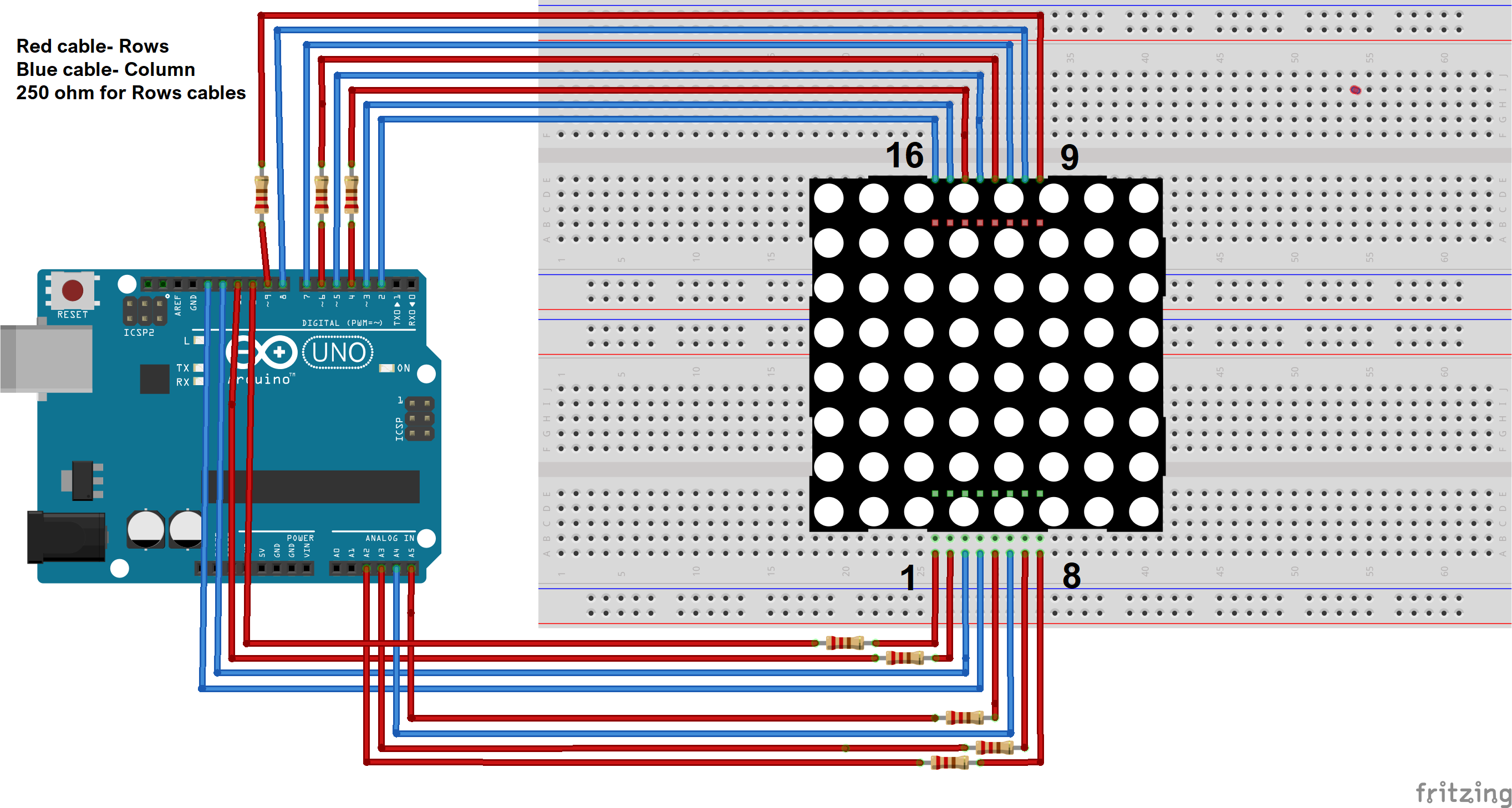

Since the wiring of this experiment is a little complicated, we need to do it step by step.





Upload the sample sketch

Copy the example code  below into an Arduino program.

int C[] = {6,11,10,3,A3,4,8,9};
// 2-dimensional array of column pin numbers:
int R[] = {2,7,A5,5,13,A4,12,A2};
unsigned char biglove[8][8] = //the big “heart”
{
0,0,0,0,0,0,0,0,
0,1,1,0,0,1,1,0,
1,1,1,1,1,1,1,1,
1,1,1,1,1,1,1,1,
1,1,1,1,1,1,1,1,
0,1,1,1,1,1,1,0,
0,0,1,1,1,1,0,0,
0,0,0,1,1,0,0,0,
};
unsigned char smalllove[8][8] = //the small “heart”
{
0,0,0,0,0,0,0,0,
0,0,0,0,0,0,0,0,
0,0,1,0,0,1,0,0,
0,1,1,1,1,1,1,0,
0,1,1,1,1,1,1,0,
0,0,1,1,1,1,0,0,
0,0,0,1,1,0,0,0,
0,0,0,0,0,0,0,0,
};
void setup()
{
// iterate over the pins:
for(int i = 0;i<8;i++)
// initialize the output pins:
{
pinMode(R[i],OUTPUT);
pinMode(C[i],OUTPUT);
}
}
void loop()
{
for(int i = 0 ; i < 100 ; i++) //Loop display 100 times
{
Display(biglove); //Display the “Big Heart”
}
for(int i = 0 ; i < 50 ; i++) //Loop display 50 times
{
Display(smalllove); //Display the “small Heart”
}
}
void Display(unsigned char dat[8][8])
{
for(int c = 0; c<8;c++)
{
digitalWrite(C[c],LOW);//use thr column
//loop
for(int r = 0;r<8;r++)
{
digitalWrite(R[r],dat[r][c]);
}
delay(1);
Clear(); //Remove empty display light
}
}
void Clear()
{
for(int i = 0;i<8;i++)
{
digitalWrite(R[i],LOW);
digitalWrite(C[i],HIGH);
}
}

Running Result

A few seconds after the upload finishes, you should now see a heart blink on the 8×8 LED matrix .
