Description

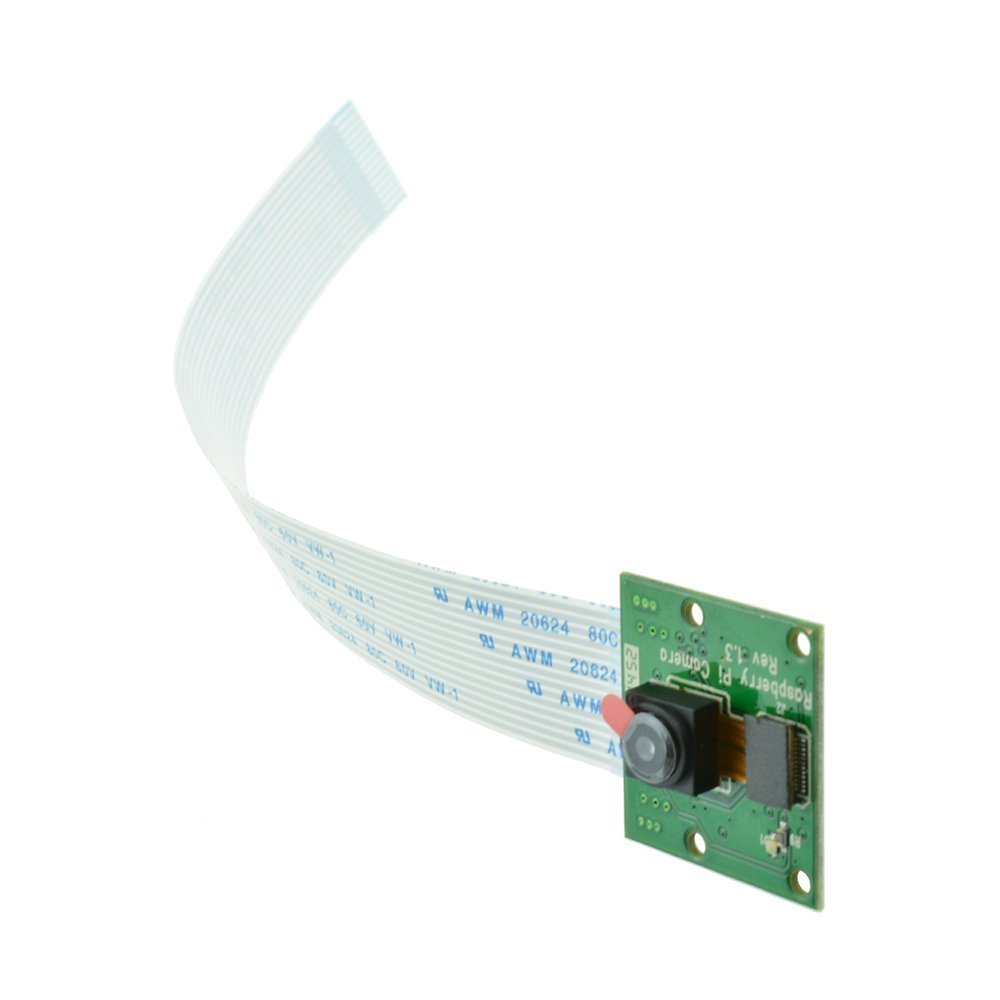

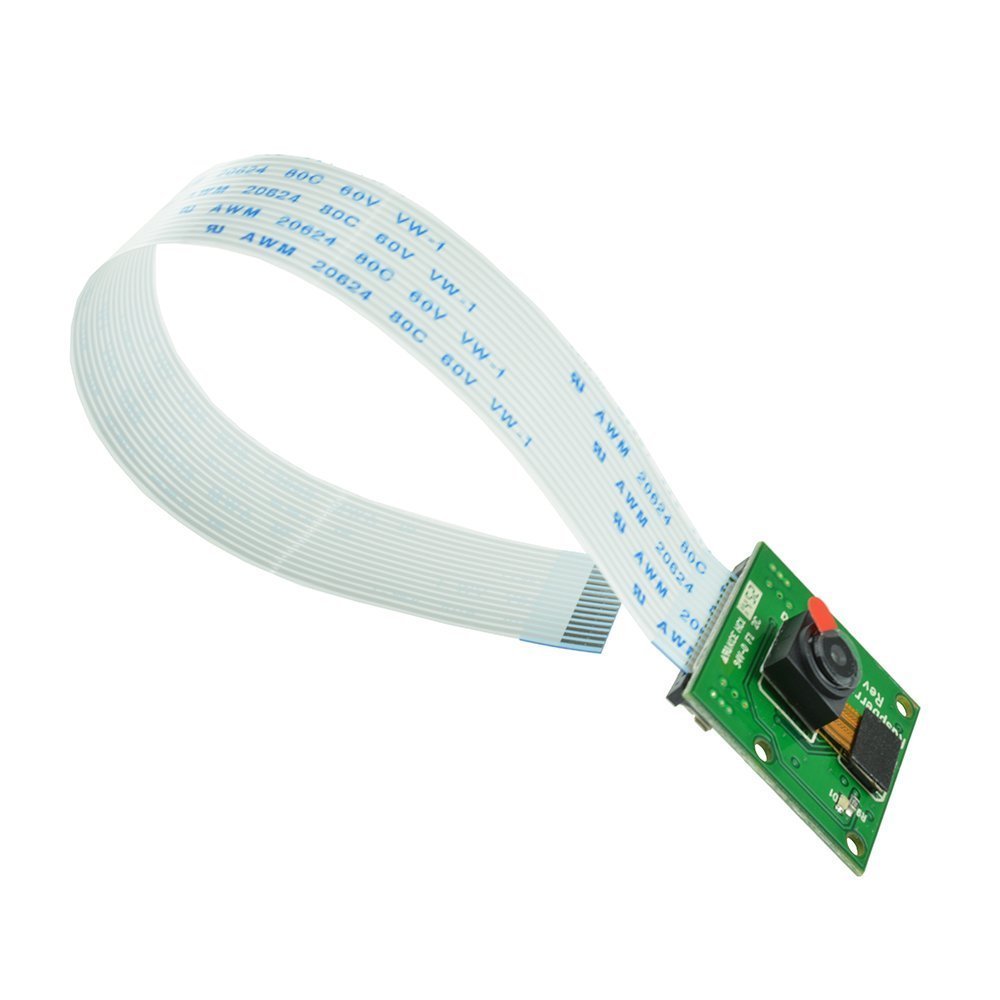

The Camera Module is a 5 megapixel custom designed add-on for Raspberry Pi, featuring a fixed focus lens.
It’s capable of 2592 x 1944 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video.
It attaches to Pi by way of one of the small sockets on the board upper surface and uses the dedicated CSi interface, designed especially for interfacing to cameras.
5 megapixel native resolution sensor-capable of 2592 x 1944 pixel static images Supports 1080p30, 720p60 and 640x480p60/90 video.
Camera is supported in the latest version of Raspbian, Raspberry Pi’s preferred operating system.
The board itself is tiny, at around 25mm x 20mm x 9mm.
It also weighs just over 3g, making it perfect for mobile or other applications where size and weight are important.

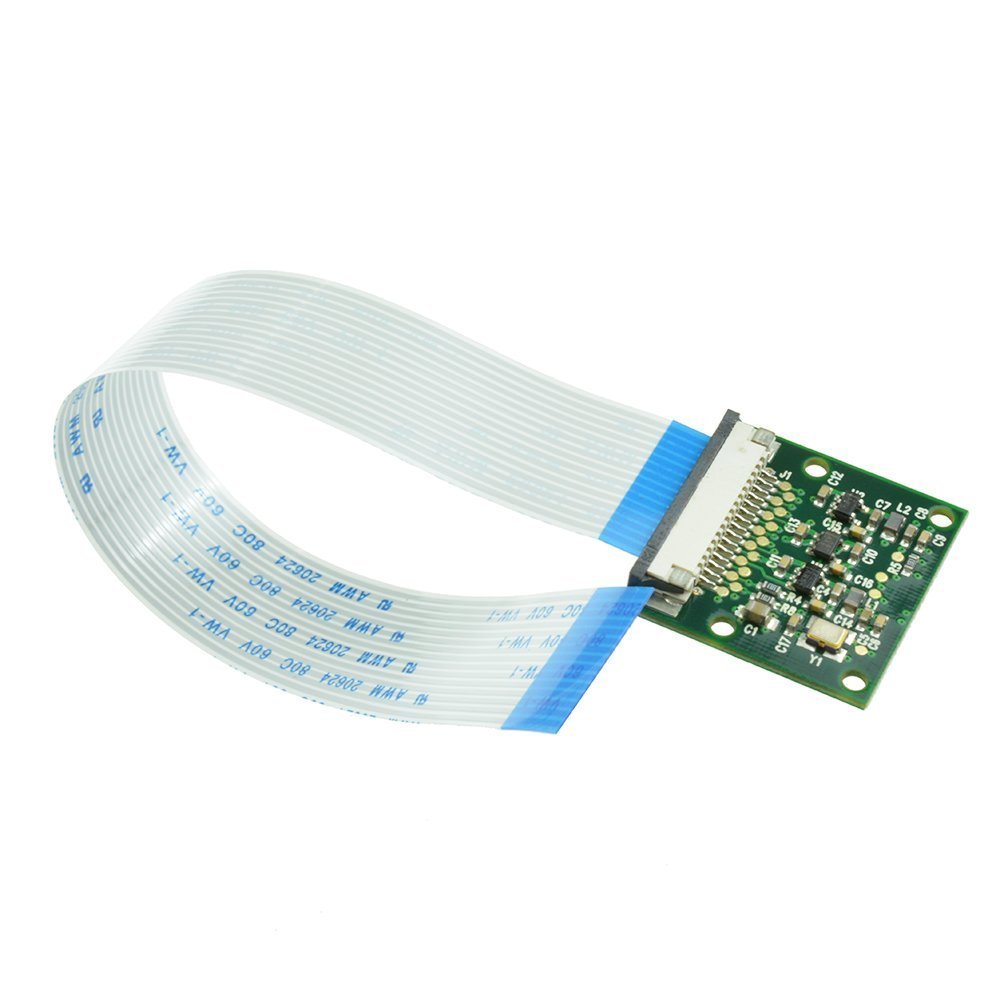

It connects to Raspberry Pi by way of a short ribbon cable.
The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens on-board.
In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video.
The camera is supported in the latest version of Raspbian, Raspberry Pi’s preferred operating system.
1.4 µm X 1.4 µm pixel with OmniBSI technology for high performance (high sensitivity, low crosstalk, low noise) optical size of 1/4″.
Automatic image control functions: – automatic exposure control (AEC) – automatic white balance (AWB) – automatic band filter (ABF) – automatic 50/60 Hz luminace detection – automatic black level calibration (ABLC) programmable controls for frame rate , AEC/AGC 16-zone size/position/weight control, mirror and flip, cropping, windowing, and panning digital video port (DVP) parallel output interface 32 bytes of embedded one-time programmable (OTP) memory.
