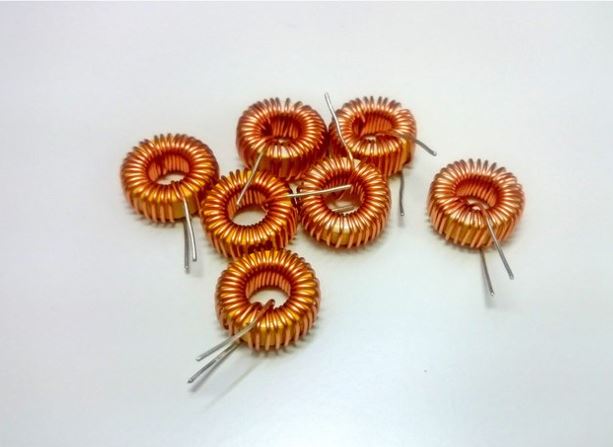

47uH 5A Through Hole Magnetic Ring Inductor COM46

Description

47uH 5A Thorough hole Inductor is a passive electronic device widely used in electronic circuits. It is an insulated coil that is a wire wound on a ring-shaped form that is made of different materials, such as, powdered iron, ferrite, or another material. This  inductor is mostly used where large inductance is required.  These inductors have more inductance per turn and can carry more current than solenoids with a core of similar material and size.

Features/Specs:

• Material: Core Ferrite
• Care Part No: MKS166125
• Inductance: 47µH
• Tolerance: ±20%
• Current Rating: 5.2 A
• Shielding: Unshielded
• Operating Temperature: -40°C ~ 105°C
• Mounting Type: Through-Hole
• Package/Case: Radial, Vertical (Open)
• Core OD: 16mm
• Dimensions (D x W): (20mm x 10 mm)
• Diameter: 20mm
• Width: 10mm
• Weight: 10gm

Applications:

• Ideally used in electronics Devices
• P3, PDA, HDD, DSC/DVC, as DC-DC converter inductors
• Ideally, this inductor finds its use in notebook PCs
• Motherboards for laptop and desktop computers.
• DC/DC converter in distributed power systems or VRM Applications.
• Inductor for general purpose use.
• Game Machines, etc

Package includes:
1×47UH 5A THFORUGH HOLE
