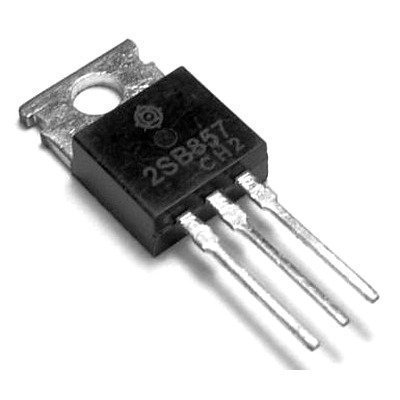

2SB857 Bipolar Transistor COM26

Description

The 2SB857 transistor can have a current gain of 60 to 320. The gain of the 2SB857-B will be in the range from 60 to 120, for the 2SB857-C it will be in the range from 100 to 200, for the 2SB857-D it will be in the range from 160 to 320.

• Type: PNP
• Collector-Emitter Voltage, max: -50 V
• Collector-Base Voltage, max: -70 V
• Emitter-Base Voltage, max: -5 V
• Collector Current − Continuous, max: -4 A
• Collector Dissipation: 40 W
• DC Current Gain (h_fe): 60 to 320
• Transition Frequency, min: 15 MHz
• Operating and Storage Junction Temperature Range: -45 to +150 °C
• Package: TO-220
