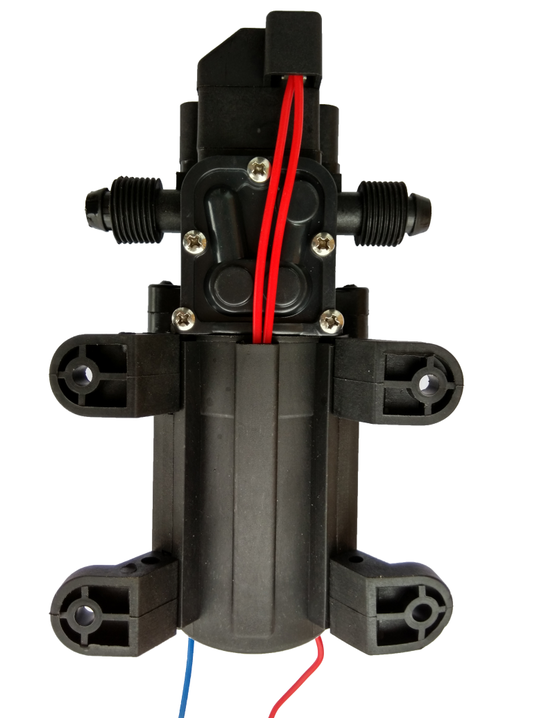

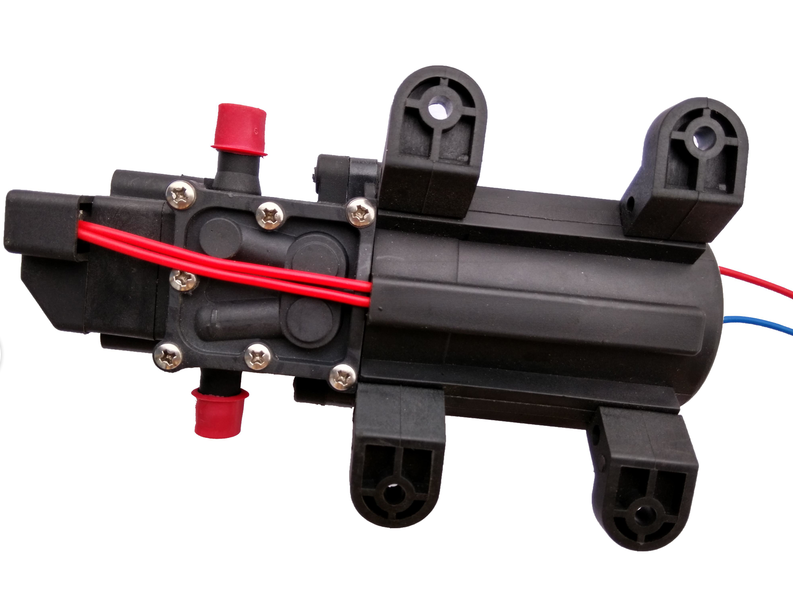

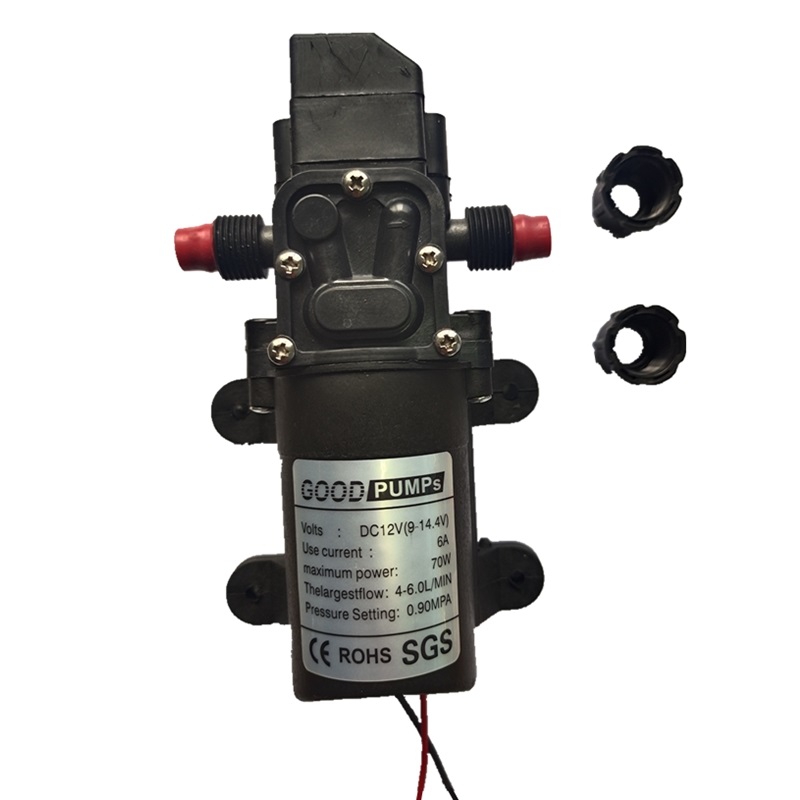

12V DC 4-6L/Min 0.90MPA 130PSI 70W 6A High Pressure Diaphragm Water Pump COM32, R28

Description

Miniature diaphragm pumps are widely used in general industrial equipment, medical equipment, chemical equipment, ships, beverages, carpet and floor cleaning, water purification and water treatment equipment, vehicle cleaning, agricultural spraying, pipeline boosting, air conditioning cleaning and cooling, coal metallurgical industry wait.

Main application: electric sprayer, cleaning machine, heater, water dispenser, medical equipment and other supporting equipment that need to be pressurized

Specifications :

• Volts : 12V DC
• Use current: 6A
• Pressure : 0.90MPA(MAX 130PSI)
• Hose barb Flow : 4-6L/ min
• Temperature : 0-60 degree Celsius

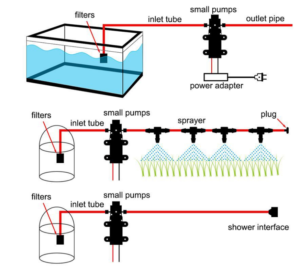

Application

• Electric sprayer
• Cleaning machine
• Heater
• Water dispenser
• Medical equipment
• Other supporting equipment that need to be pressurized

Precautions

1. This product is powered by DC, and it is strictly forbidden to directly connect to 220V AC.
2. Please install a filter net of 80 mesh or more at the water inlet of the pump when in use .
3. The diameter of the water spray hole must meet the specified value, otherwise the motor will be damaged. When the pump body of the pressure switch pump vibrates, the diameter of the nozzle hole should be increased , the flow rate should be increased or the pressure output value should be reduced.
4. The working environment temperature of the pump: 0～60 ℃, the pump should not work in an environment with too much humidity

Package includes:
1×12V DC 4-6L/Min 0.90MPA 70W 6A High Pressure Diaphragm Water Pump
