Description

This is a DC adjustable step up step down power supply module with 3Bit LED digital tube display. Display output voltage in real time. Rotate potentiometer to adjust output voltage. Set output voltage to meet the requirement. It can be used as ordinary buck power supply module



Features

• Low power supply
• Wide voltage output
• Support boost and buck
• Long handle potentiometer adjustment



Specifications

1. Product Number:ZK-DP
2. Input Voltage:DC 5V
3. Output Voltage:DC 1.0V-24.0V
4. Output Power:3W(Max)
5. Conversion efficiency:94%
6. Working current:30mA
7. Working Temperature range:-20℃~85℃
8. Working Humidity range:0%-95%RH

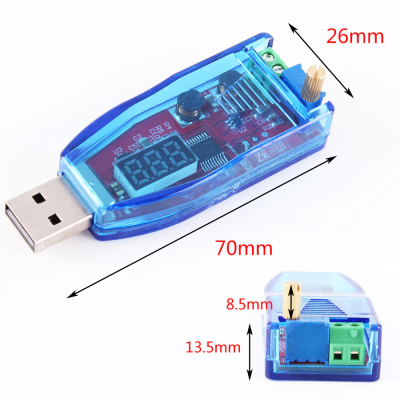

9. Size :70*26*22mm



Getting along with the ZK-DP step up/down

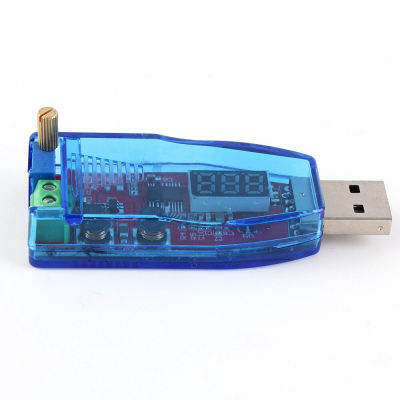

Now let’s have a glance on the parts of ZK-DP step up/down module



Most safe using procedures

1. Input DC 5V from USB male socket
2. Adjust output voltage by potentiometer to meet require
3. Remove input voltage
4. Connect load at output terminal
5. Re-connect power ON and enjoy using.



Please take a attentive note on the following;

1. Please donrsquot short output.
2. Its maximum output power is 3W, which cannot exceed.
3. Please read use manual and description before use.
