Description
FEATURES：
Alarm output mode: normally open / normally closed can adjustable
Operating Voltage : DC 12V(9～16)V
Current consumptions: 18mA( DC12V)
Detecting distance: 12 m
Detecting angle: 110
Self-testing time :60 S or so
Working temperature: -10 – +50 degree
Alarm indicator: Red led
Alarm output: N.C or N.O , DC28V 100mA
Temper output: N.C. , dc28v ,100mA
Range of coverage: 11 distance , 8 middle, 5 vicinities
Sensor : dual element infrared sensor
Environment humidity 95% RH ( no congelation)
Anti RF interference :10 MHz 1GHz 20V/m
Installation mode: wall mounted or hanged in corner
Installation height : 1.7 to 2.5 m ( 2.2 is proposed)
Outline size: 52.5L x 38.5W x 89H mm
Function Setting
1. Relay Jumper: Choose NO or NC to set the state of alarm output .you should choose different alarm output in according with host.
2. Pulse Jumper: You can adjust the sensitivity and anti RF interference by choosing the Pulse jumper
3. LED Jumper: Control LED indicator, without effect of detector normal work.

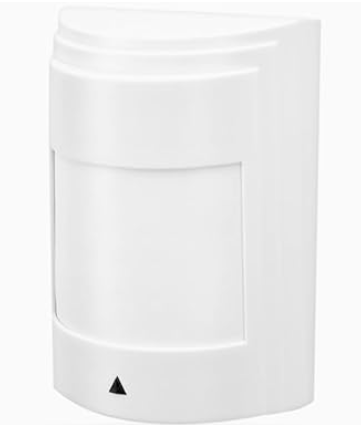

The product is Wired infrared detector with high stability. It has adopted advanced technology in signal processing and provided superhigh detection ability and anti error alarm. The detector will detect movement of human automatically when intruder passes through the detection area, and it will send out alarm signal to alarm host if there is movement. The product is suitable for the safety of residential house, villas, factories, markets, warehouses, office building etc.
Package includes: 1xSgooway
