PRODUCT OVERVIEW:
- Low density: lightweight, low inertia.
- Capability to absorb shock and vibration as a result of elastic compliance.
- Ability to operate with minimum or no lubrication, due to inherent lubricity.
- The relatively low coefficient of friction.
- Operating Voltage(VDC): 3~12
- Shaft Length (mm): 8.5
- Shaft Diameter (mm): 5.5 (Double D-type)
- No Load Current: 40-180mA.
- Rated Speed(After Reduction): 300 RPM
- Rated Torque: 0.35 Kgcm
Specification
| Operating Voltage (VDC) | 3 ~ 12 |
| Shaft Length (mm) | 8.5 |
| Shaft Diameter (mm) | 5.5 |
| No Load Current (mA) | 40-180mA. |
| Rated Speed After Reduction (RPM) | 300 |
| Rated Torque (Kg-Cm) | 0.35 |
| Weight (gm) | 30 |
| Dimensions in mm (LxWxH) | 70x35x22 |
| Gearbox Shape | Straight |
| Shipment Weight | 0.033 kg |
| Shipment Dimensions | 8 × 4 × 4 cm |
DESCRIPTION:

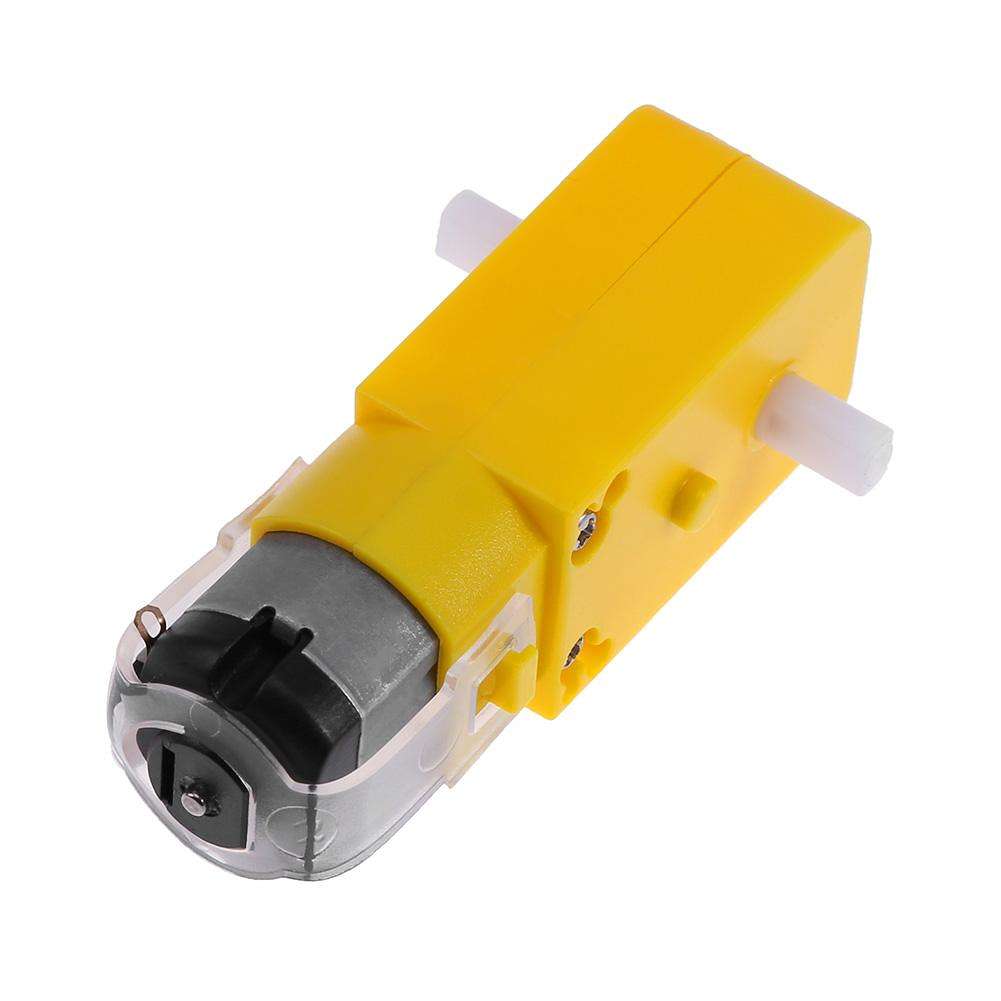

Gear TT DC Motor For Smart Robot Car – BO series straight motor gives good torque and rpm at lower operating voltages, which is the biggest advantage of these motors.
Small shaft with matching wheels gives an optimized design for your application or robot. Mounting holes on the body & light weight makes it suitable for in-circuit placement. This motor can be used with 69mm Diameter Wheel for Plastic Gear Motors and 87mm Diameter Multipurpose Wheel for Plastic Gear Motors.
Low-cost geared DC Motor. It is an alternative to our metal gear DC Motors It comes with an operating voltage of 3-12V and is perfect for building small and medium robots. Available with 60 and 150 RPM.
The motor is ideal for DIY enthusiasts. This motor set is inexpensive, small, easy to install, and ideally suited for use in a mobile robot car. They are commonly used in our 2WD and 4WD platforms.
Package Includes: 1x TT DC Motor
