Description

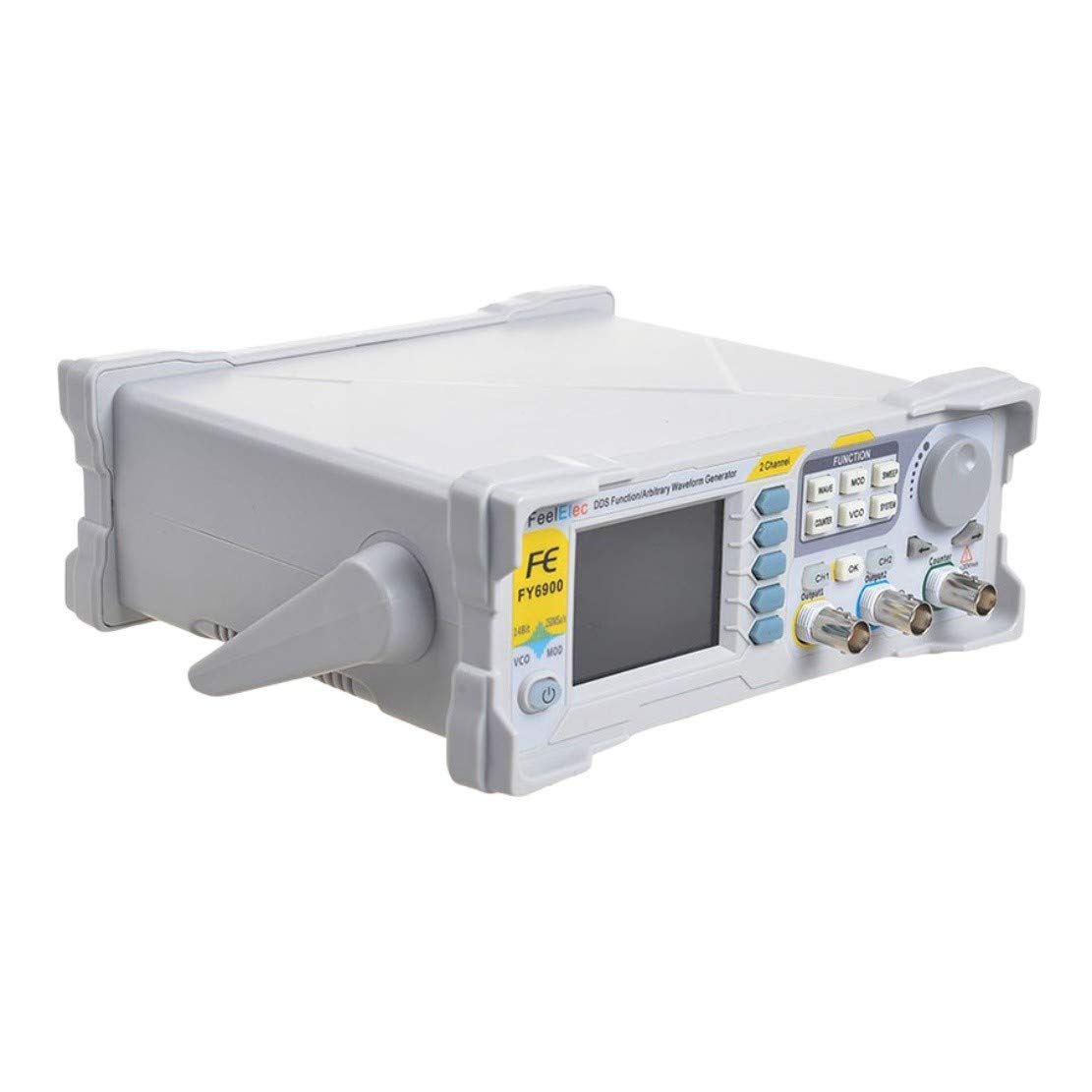

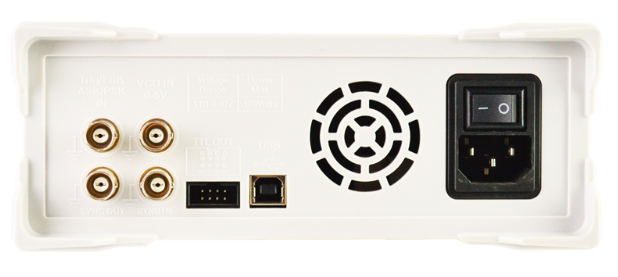

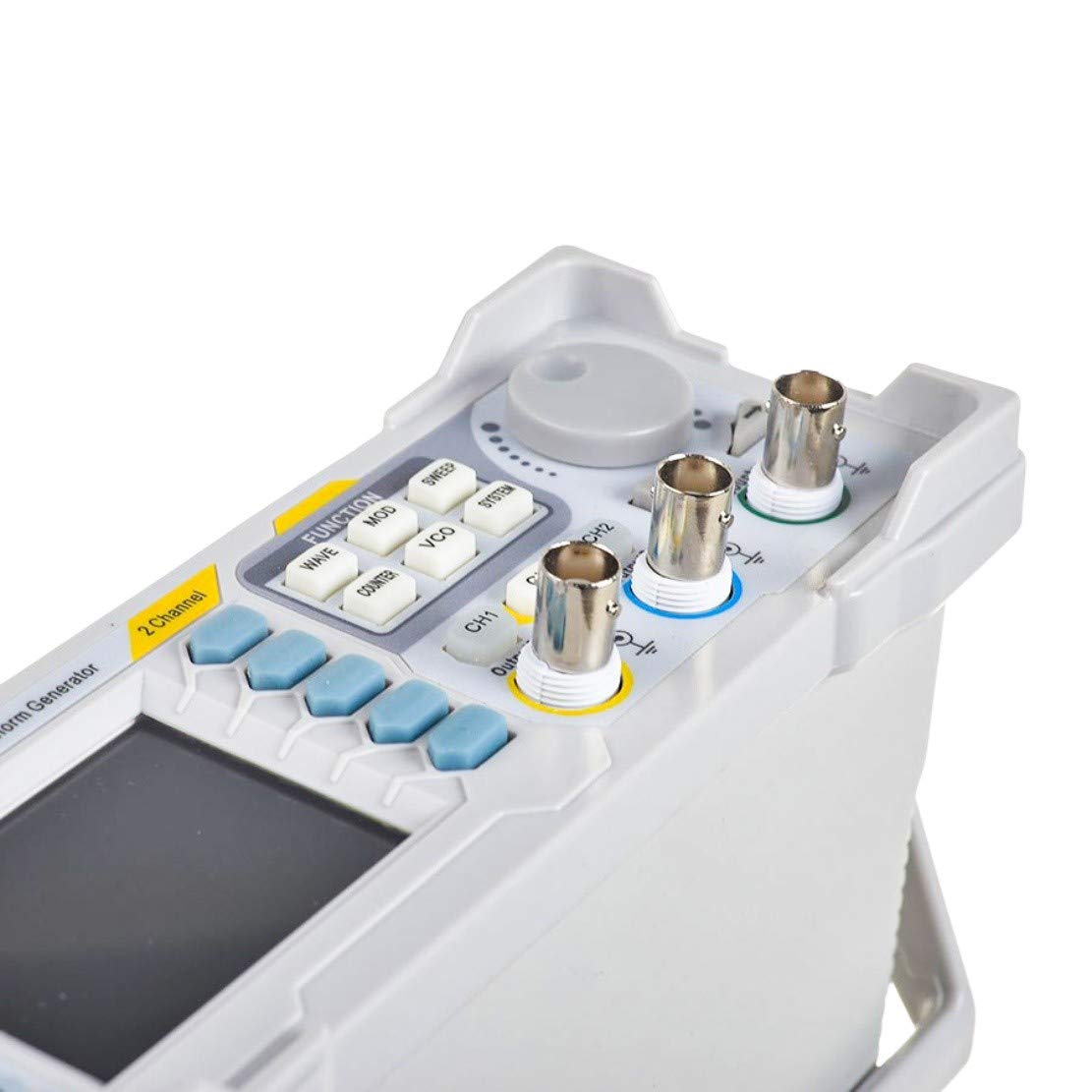

The FY6900 series dual channel function/arbitrary waveform generator is a high performance, cost effective combination of function signal generator, arbitrary waveform generator, pulse signal generator, VCO, frequency sweeper, counter and frequency meter. A versatile signal generator. The rich shortcuts greatly simplify the complicated operation process and greatly enhance the operability of the instrument. Users do not have to spend a lot of time learning and familiar with the operation of the instrument, you can use it. It is especially suitable for use in electronic enthusiasts, research institutes, high-tech enterprises, and vehicle maintenance
Package includes: 1×FY6900 Function Generator 1xBNC Test Cable 1xUSB Communication cable 1xPower Cable 1xQ9 Clip Cable
Specifications
★Model：FY6900-60M
★Sine：0~60MHz
★Square：0~25MHz
★Ramp, Triangle, Pulse, TTL/CMOS, Arbitrary Waveform：0~10MHz
★Waveforms：Sine, Square, Rectangle (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, Sawtooth Wave, CMOS, Four channels TTL, DC, Half wave, Full wave, Positive Step, Inverse Step, Positive Exponent, Inverse Exponent, Lorenz Pulse, Multitone, Noise, ECG, Trapezoidal Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, and other 64 sets customer-defined waveform.
★Non-Volatile Storage：Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64
★Sampling Rate：250MSa/s
★Sine Harmonic Suppression：≥50dBc(<1MHz); ≥45dBc(1MHz~20MHz)
★Amplitude（VPP）：Frequency≤5MHz: 1mVpp~24Vpp; 5MHz~10MHz: 1mVpp~20Vpp; Frequency>20MHz: 1mVpp~5Vpp;
★Input Voltage Range：1Vpp~20Vpp
★Range：0.01Hz~100MHz
★Sweep Type：Linear or Logarithm
★Sweep Objects：Frequency, Amplitude, Offset, Duty Cycle
★VCO control object：voltage controlling frequency (VCF), voltage controlling amplitude (VCA), voltage controlling offset, voltage controlling duty cycle.
★VCO special function：Can Amplitude Modulate (AM) or Frequency Modulate (FM) by external analog signal.
★Modulation Type：AM, FM, PM, ASK, FSK, PSK
★Display Type：2.4 inch, TFT Color Display.
★Save & Load Amount：20
★Interface Type：USB to Serial interface
★Communicating Speed：9600bps (Industrial standard)
★Power Voltage Range：AC100V~240V
★Item Size：Approx. 210mm * 195mm * 75mm / 8.27 * 7.68 * 2.96 (L * W * H)
★Item Weight：Approx. 611g / 21.56oz
★Package Weight：Approx. 1065g / 37.51oz(Main engine, accessories and packing materials)
Features
| Frequency | |||||||||
| Model | FY6900-20M | FY6900-30M | FY6900-50M | FY6900-60M | |||||
| Sine | 0~20MHz | 0~30MHz | 0~50MHz | 0~60MHz | |||||
| Square | 0~15MHz | 0~25MHz | 0~25MHz | 0~25MHz | |||||
| Ramp, Triangle | 0~10MHz | 0~10MHz | 0~10MHz | 0~10MHz | |||||
| Pulse | 0~10MHz | 0~10MHz | 0~10MHz | 0~10MHz | |||||
| TTL/CMOS | 0~10MHz | 0~10MHz | 0~10MHz | 0~10MHz | |||||
| Arbitrary Waveform | 0~10MHz | 0~10MHz | 0~10MHz | 0~10MHz | |||||
| Min pulse width | 20ns(All models of pulse wave min width can be 20ns) | ||||||||
| Min. Resolution on all frequency range | 1μHz (Min. resolution can low to 1μHz on all frequency range to ensure adjusting accuracy under high frequency. For example, it can output 10.000000000001MHz signal). | ||||||||
| Accuracy | ±20ppm | ||||||||
| Stability | ±1ppm/ 3hours | ||||||||
| Waveform Characteristics | |||||||||
| Waveforms | Sine, Square, Rectangle (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, Sawtooth Wave, CMOS, Four channels TTL, DC, Half wave, Full wave, Positive Step, Inverse Step, Positive Exponent, Inverse Exponent, Lorenz Pulse, Multitone, Noise, ECG, Trapezoidal Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, and other 64 sets customer-defined waveform. | ||||||||
| Non-Volatile Storage | Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64 | ||||||||
| Waveform Length | 8192 points * 14bits | ||||||||
| Sampling Rate | 250MSa/s | ||||||||
| Vertical Resolution | 14 bits | ||||||||
| Sine | Harmonic Suppression | ≥50dBc(<1MHz); ≥45dBc(1MHz~20MHz); | |||||||
| Total Harmonic Distortion | <0.5% (20Hz~20kHz,0dBm) | ||||||||
| Rectangle | Rise/Fall Time | ≤7ns (VPP<5V) | |||||||
| Overshoot | ≤5% | ||||||||
| Duty Cycle | 0.01%~99.99% (Resolution 0.01%) | ||||||||
| Sawtooth wave | Linearity | >99% (0.01Hz~10kHz) | |||||||
| Output characteristics | |||||||||
| Amplitude(VPP) | Frequency≤5MHz: 1mVpp~24Vpp; 5MHz<frequency≤10mhz: br=””> 10MHz<frequency≤20mhz: br=””> Frequency>20MHz: 1mVpp~5Vpp;</frequency≤20mhz:></frequency≤10mhz:> |
||||||||
| Resolution | 1mV | ||||||||
| Amplitude Stability | ±0.5%/ 5 Hours | ||||||||
| Amplitude flatness | ±2.5%(<10MHz);±5%(>10MHz); | ||||||||
| Waveform Output | |||||||||
| Impedance | 50Ω±10%(Typical) | ||||||||
| Protection | All channels can work more than 60 seconds when the load is short-circuited. | ||||||||
| DC Offsets | |||||||||
| Offsets Range | Frequency≤20MHz: ±12V; Frequency>20MHz: ±2.5V; | ||||||||
| Offsets Resolution | 1mV | ||||||||
| Phase Feature | |||||||||
| Phase range | 0~359.99° | ||||||||
| Phase resolution | 0.01° | ||||||||
| TTL Output | |||||||||
| TTL Level Amplitude | >3Vpp | ||||||||
| Fan-out | >8 TTL LOAD | ||||||||
| Rise/Fall Time | ≤10ns | ||||||||
| CMOS Output | |||||||||
| Low Electric Level | <0.3V | ||||||||
| High Electric Level | 1V~12V | ||||||||
| Rise/Fall Time | ≤18ns | ||||||||
| External Measurement | |||||||||
| Function | Frequency, Period, Positive/Negative Pulse Width, Duty Cycle | ||||||||
| Input Voltage Range | 1Vpp~20Vpp | ||||||||
| Frequency Meter | Resolution | 0.01Hz (Gate Time = 100S) | |||||||
| Range | 0.01Hz~100MHz | ||||||||
| Sensitivity | Gate Time 3 grades (1S, 10S, 100S) adjustable | ||||||||
| Counter | Range | 0-4294967295 | |||||||
| Coupling | DC, AC | ||||||||
| Working Mode | Manual | ||||||||
| Period | Measurement Range | 5ns ~ 20s | DC coupling measurement | ||||||
| Pulse Width | Measurement Range | 0ns ~ 20s | |||||||
| Resolution | 5ns | ||||||||
| Duty Cycle | Range (Display) | 0% ~ 100% | |||||||
| Sweep | |||||||||
| Carrier Waveform | Sine, Square, Ramp, Arbitrary (except DC) | ||||||||
| Sweep Type | Linear or Logarithm | ||||||||
| Sweep Direction | Up, Down and roundtrip sweep directions; | ||||||||
| Sweep Objects | Frequency, Amplitude, Offsets, Duty Cycle | ||||||||
| Sweep Time | 0.01S~999.99S/Step | ||||||||
| Setting range | Starting position and Finishing position can be set arbitrarily. | ||||||||
| Sweep Range | Decided by Parameters setting. | ||||||||
| VCO (Voltage Control Output) | |||||||||
| Modulation signal range to input | 0~5V | ||||||||
| VCO signal frequency range | 0-2000Hz | ||||||||
| VCO control object | voltage controlling frequency (VCF), voltage controlling amplitude , voltage controlling offsets, voltage controlling duty cycle. | ||||||||
| VCO special function | Can Amplitude Modulate (AM) or Frequency Modulate (FM) by external analog signal. | ||||||||
| Modulation | |||||||||
| Modulation Type | AM, FM, PM, ASK, FSK, PSK | ||||||||
| Carrier Waveform | Sine, Square, Triangle, Ramp, Arbitrary waveform (Except DC) | ||||||||
| AM | |||||||||
| Source | Internal (CH2) / External (VCO IN Port) | ||||||||
| Modulating Waveform | Sine, Square, Triangle, Ramp, Arbitrary waveform | ||||||||
| Depth | 0% to 120% | ||||||||
| Modulating Frequency | Internal : 1μHz~1MHz; External: 1μHz~2KHz; | ||||||||
| FM | |||||||||
| Source | Internal (CH2) / External (VCO IN Port) | ||||||||
| Modulating Waveform | Sine, Square, Triangle, Ramp, Arbitrary waveform | ||||||||
| Modulating Frequency | Internal : 1μHz~1MHz; External: 1μHz~2KHz; | ||||||||
| PM | |||||||||
| Source | Internal (CH2) / External (VCO IN Port) | ||||||||
| Modulating Waveform | Sine, Square, Triangle, Ramp, Arbitrary waveform | ||||||||
| Phase Deviation | 0° to 360° | ||||||||
| Modulating Frequency | Internal : 1μHz~1MHz; External: 1μHz~2KHz; | ||||||||
| ASK | |||||||||
| Source | Internal (CH2), External (ASK IN Port), Manual | ||||||||
| Modulating Waveform | Square with 50% duty cycle. | ||||||||
| Key Frequency | 1μHz~10MHz | ||||||||
| FSK | |||||||||
| Source | Internal (CH2), External (FSK IN Port), Manual | ||||||||
| Modulating Waveform | Square with 50% duty cycle. | ||||||||
| Key Frequency | 1μHz~10MHz | ||||||||
| PSK | |||||||||
| Source | Internal (CH2), External (PSK IN Port), Manual | ||||||||
| Modulating Waveform | Square with 50% duty cycle. | ||||||||
| Key Frequency | 1μHz~10MHz | ||||||||
| Burst Function | |||||||||
| Carrier Waveform | Sine, Square, Ramp, Arbitrary (except DC) | ||||||||
| Burst Count | 1~1048575 | ||||||||
| Trigger Source | Manual, Internal, External (AC/DC) | ||||||||
| G’eneral Specifications | |||||||||
| Display | Type | 2.4 inch, TFT Color Display. | |||||||
| Save & Load | Amount | 20 | |||||||
| Position | 01 to 20 (01 for start default value) | ||||||||
| Interface | Type | USB to Serial interface | |||||||
| Protocol | C’ommand line mode, providing communication protocols. | ||||||||
| Communicating Speed | 9600bps (Industrial standard) | ||||||||
| Power | Voltage Range | AC100V~240V | |||||||
| Technic | SMD, LSI, Reliable and durable | ||||||||
| Buzzer | Can be turned on/off by setting. | ||||||||
| Operation | Buttons and knob continuously. | ||||||||
| Environment | Temp.: 0~40℃, Humidity:<80% | ||||||||
