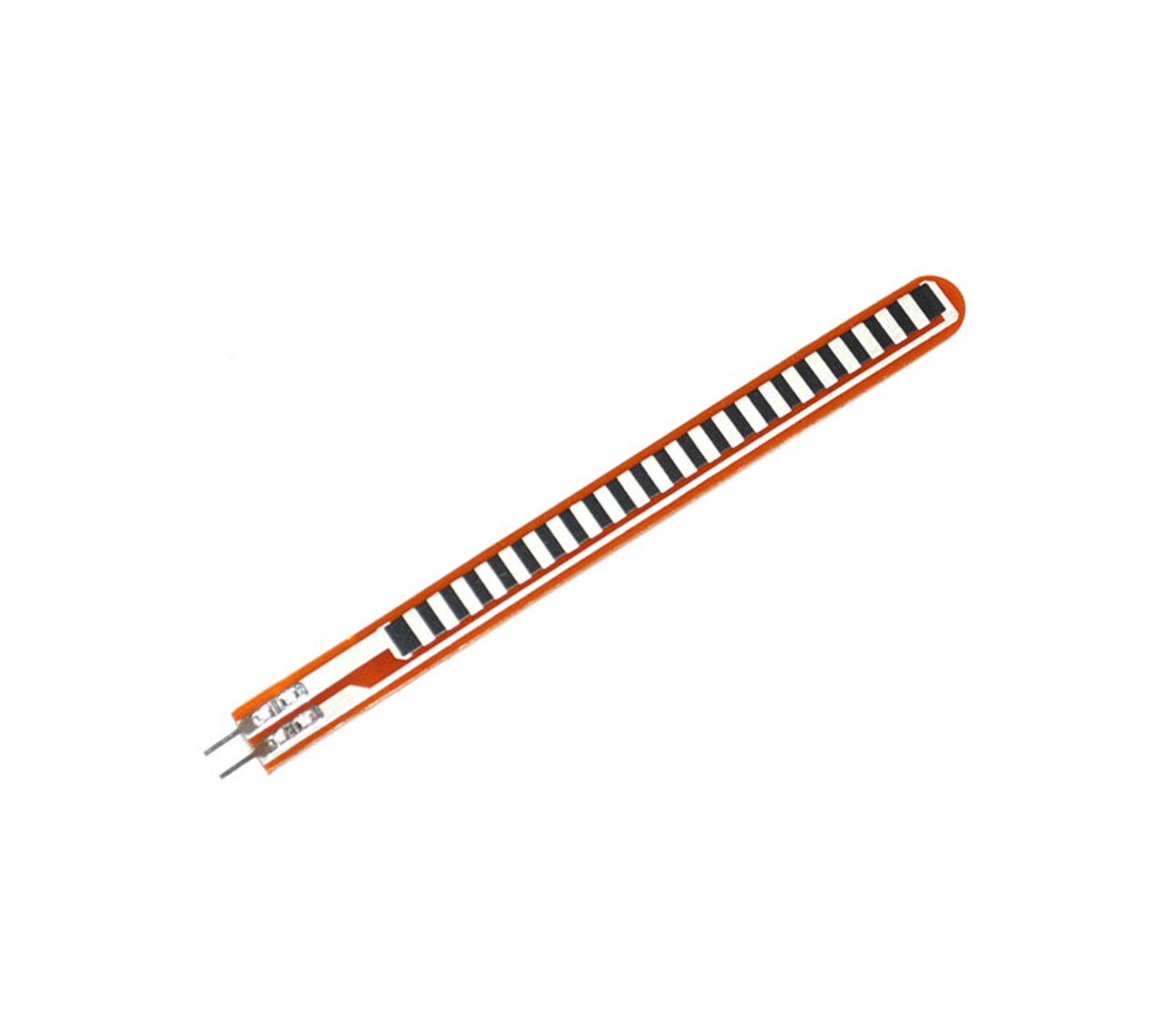

Flex Sensor SEN52

Fr20,000

A flex sensor is a kind of sensor which is used to measure the amount of defection otherwise bending. The designing of this sensor can be done by using materials like plastic and carbon. The carbon surface is arranged on a plastic strip as this strip is turned aside then the sensor’s resistance will be changed. Thus, it is also named a bend sensor. As its varying resistance can be directly proportional to the quantity of turn thus it can also be employed like a goniometer.

In stock

SKU: SEN165 Category:

Description

Features and Specifications:

  • Operating  voltage: 0-5V
  • Can operate on LOW voltages
  • Power rating : 0.5Watt (continuous), 1 Watt (peak)
  • Operating temperature: -45ºC to +80ºC
  • Flat Resistance: 25K Ω
  • Resistance Tolerance: ±30%
  • Bend Resistance Range: 45K to 125K Ohms(depending on bend)

Pinout:

Flex Sensor Features, Working, Circuit & Datasheet

The pin configuration of the flex sensor is shown above. It is a two-terminal device, and the terminals are like p1 & p2. This sensor doesn’t contain any polarized terminal such as diode otherwise capacitor, which means there is no positive & negative terminal. The required voltage of this sensor to activate the sensor ranges from 3.3V -5V DC which can be gained from any type of interfacing.

  • Pin P1: This pin is generally connected to the +ve terminal of the power source.
  • Pin P2: This pin is generally connected to GND pin of the power source.
