Description

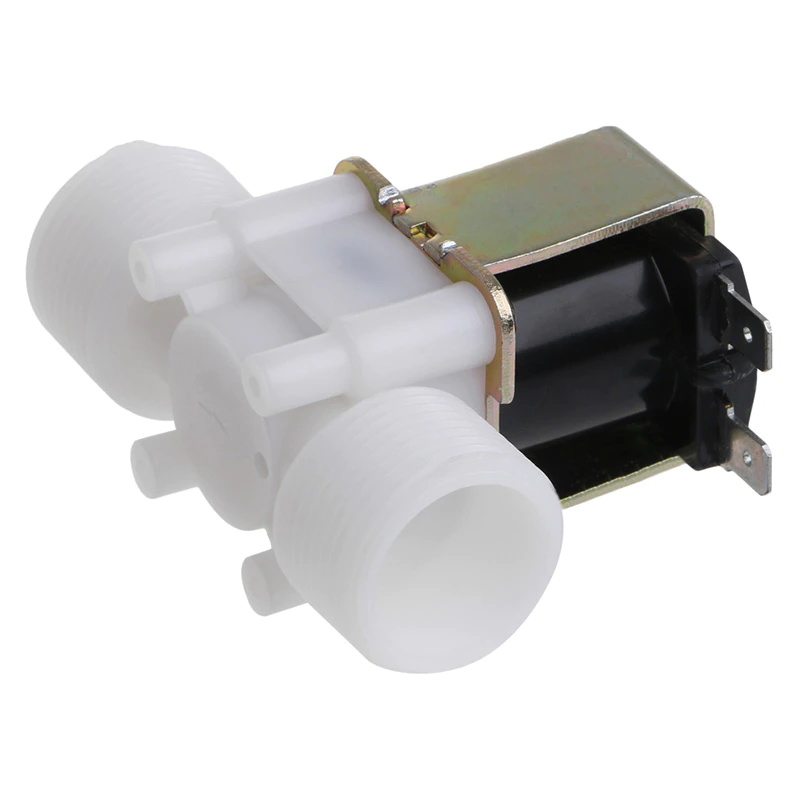

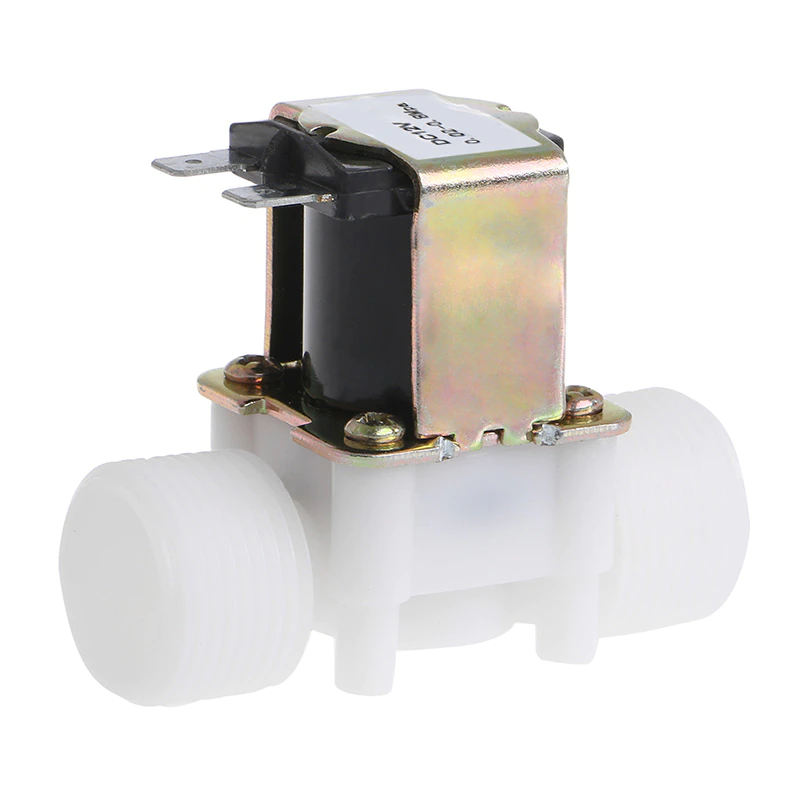

3/4″ DC 12V Pressure Normal Closed Electric Solenoid Valve that you can use to control the flow of a liquid using your computer or microcontroller. 3/4″ DC 12V Pressure Normal Closed Electric Solenoid Valve requires a minimum pressure differential of around 0.02Mpa to function.
Features
- Operating Voltage: DC 12V
- Operating Current: 300mA
- Flow bore: 14mm
- The Pipe size: 3/4″
- Working Pressure: 0.02~0.8Mpa(0.2 – 8 bar)
- Operating temperature: 1°C – 75°C
- Type: Normal closed
- Ports: 3/4″ Inlet and Outlet Ports
- Inlet and Outlet Ports Material: Plastic
- Inside Copper Coil
- It is used in water, air and low viscosity fluids
Note
It cannot be used for inflammable gas or fluids. If you want to use the solenoid valve for inflammable gas or fluids, you must buy the EXPLOSION PROOF valve.
