Description

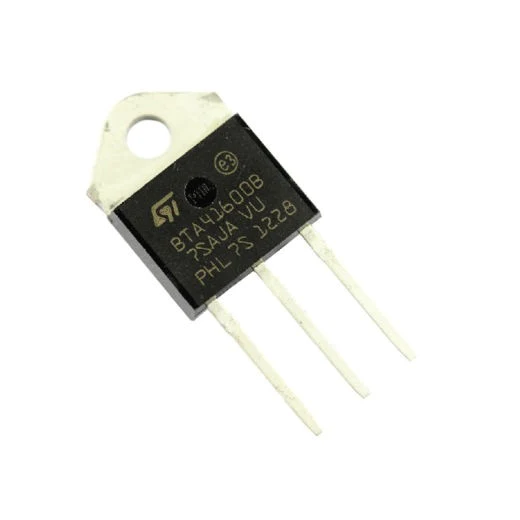

The power packages BTB41 is suitable for genera purpose AC switching. When used with the properly dimensioned heatsink, the BTA41 can enable AC switching systems up to 9 kW. Refer to ST Application Note AN533 for thermal management of Triacs. The BTA4 provides an insulated tab (rated at 2500 V rms).
Applications
- On/off function in static relays, heating regulation, induction motor starting circuits
- Phase control operations in light dimmers, motor speed controllers, and similar
Identifying Print Value of BTA41/600B
- BT indicates series number
- “A” represents that the device is insulated, while B would mean non-insulated. The insulation is provided on the Tab of the device upto 2500 volts.
- 41 = 4 and “one” zero, that equals 40 Amps
- 600 is the voltage handling capacity, therefore here it’s 600 volts.
- B represents the triggering sensitivity that’s 50mA in this case
Pinout
Find datasheet here.
Package includes: 1×BTA41-6000B Triac
