Description

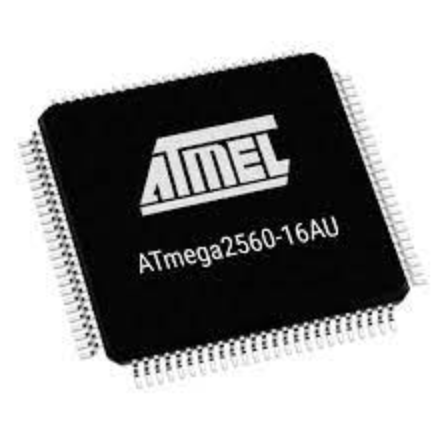

Faranux.com brings you the original high-performance 8-bit AVR microcontroller from Microchip. The chip is based on the advanced RISC architecture, with an optional boot code section with independent lock bits. The chip features 32 × 8 general-purpose working registers, an on-chip 2-cycle multiplier, 4Kbytes EEPROM, 8Kbytes internal SRAM, up-to 10,000 write/erase cycles on flash and 100,000 write/erase cycles on EEPROM.
Features:
- Advanced RISC Architecture
- High Endurance Non-volatile Memory Segments
- QTouch Library Support
- JTAG (IEEE std. 1149.1 compliant) Interface
- Ultra-Low Power Consumption
- Special Microcontroller Features Like Power-on Reset and Programmable Brown-out Detection and Internal Calibrated Oscillator.
SPECIFICATION
| Input Supply Voltage (VDC) | 4.5 ~ 5.5 |
| Product Series | AVR ATmega |
| Core Processor | 8 Bit AVR |
| Speed | 16MHz |
| Connectivity | EBI/EMI, I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 86 |
| Data Converters | A/D 16x10b |
| Oscillator Type | Internal |
| Operating Temperature (°C) | -40 to 85 |
