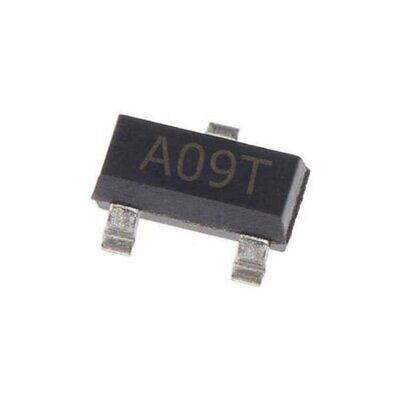

AO3400 SMD SOT-23 N-Channel MOSFET COM11

Description

The AO3400 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V. This device is suitable for use as a load switch or in PWM applications.

Features :

• Drain-source voltage (VDS)  : 30V
• Drain current (Id) : 5.8 A at (VGS : 10V)
• Gate-Source Voltage (VGS):±12 V
• Drain to source resistance RDS(ON) < 28mΩ at (VGS = 10V)
• Drain to source resistance RDS(ON) < 33mΩ at (VGS = 4.5V)
• Drain to source resistance RDS(ON) < 52mΩ at ( VGS  = 2.5V)
• Power dissipation (Pd):1.4 W at Tamb:25°C and (Pd):0.9 W at Tamb:70°C
