Description

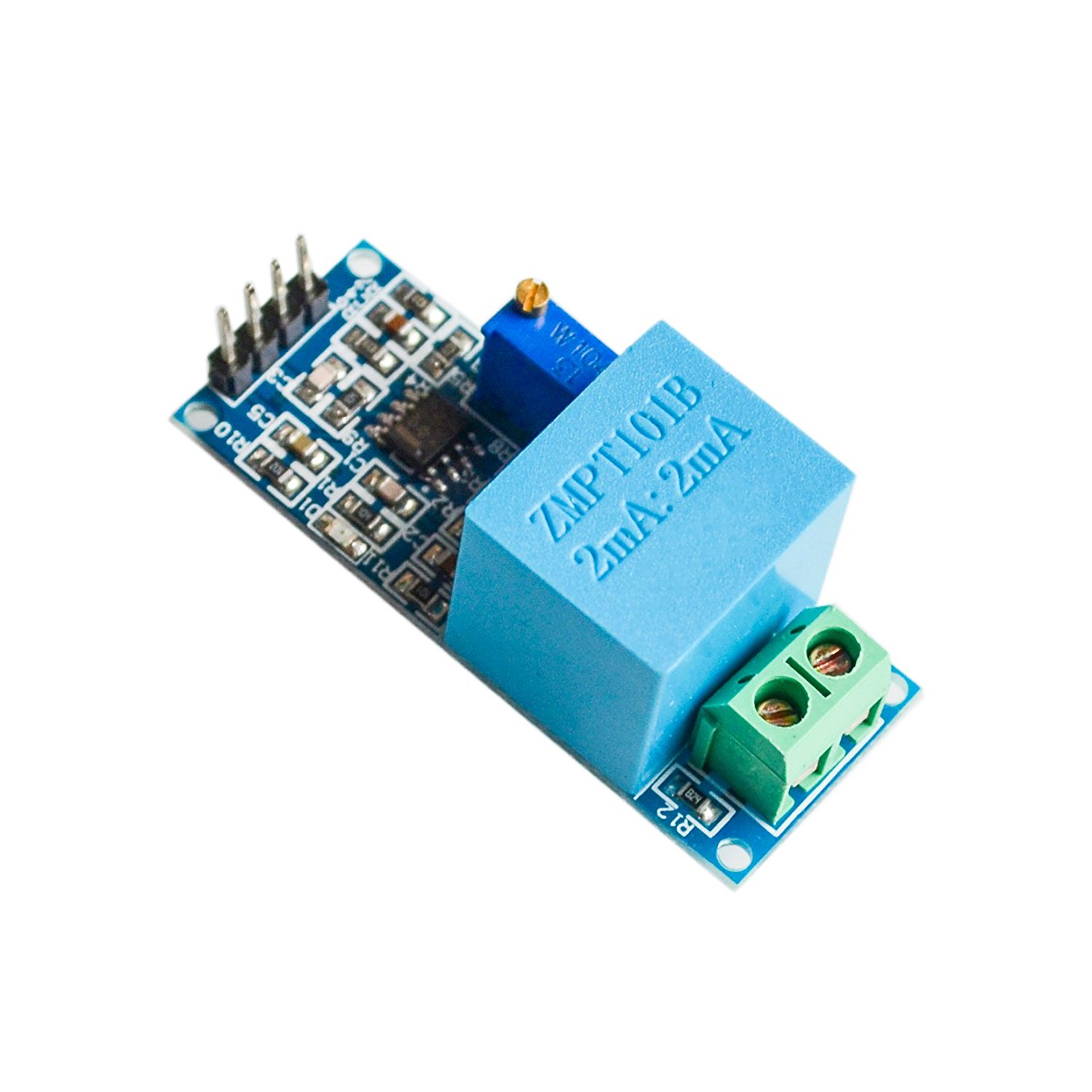

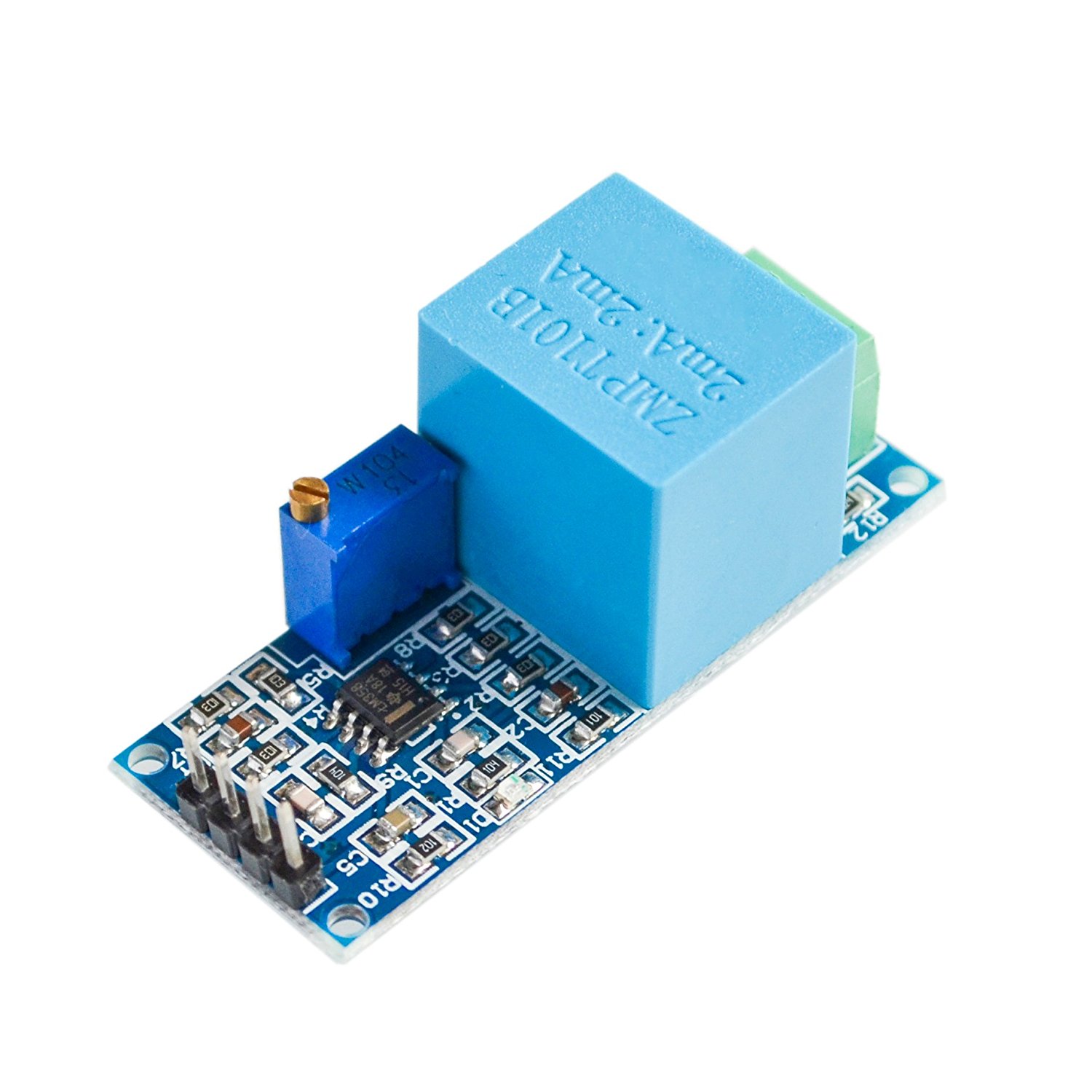

A01B is an active output single-phase AC voltage transformer module has an onboard precision op amp circuit, the signal for precise sampling and appropriate compensation function, It useed an measure the 250V AC voltage corresponding to the analog output that can be adjusted.
Note that the output signal is a sine wave and it can be used for AD sampling.
Features:
- Rated Input Current: 2mA
- Retardation (rated input): “20′ (input 2mA, sampling resistance 100Ω)
- The linear range: 0 ~ 1000V
- Isolation voltage: 4000V
- Operating temperature: -40 ° C- + 70 ° C
- Supply voltage (VCC): 5-30V
