50Kg Body Load Cell Weighting Sensor Resistance strain Half-bridge SEN32 ,R24

Fr6,500

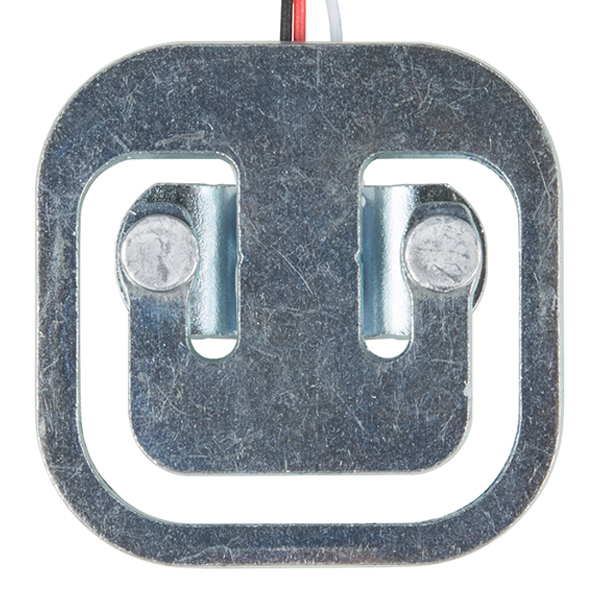

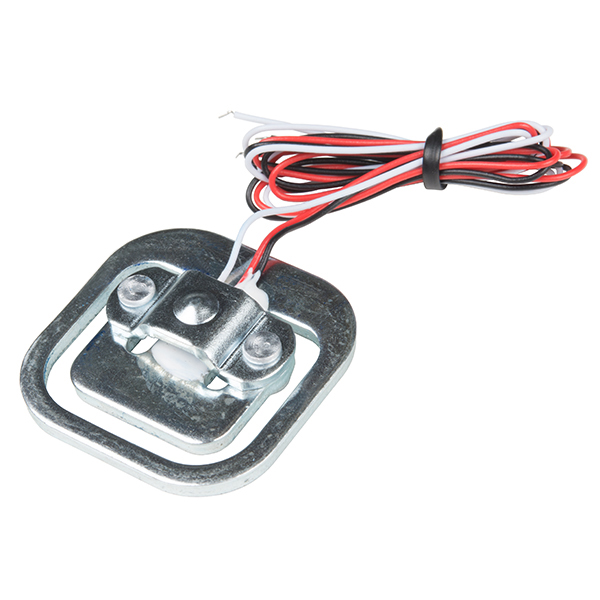

This load sensor, sometimes called a strain gauge, is the same one found in digital bathroom scales. This sensor can measure up to about 50kg.

In stock

SKU: SEN5082 Category:

Description

This load sensor, sometimes called a strain gauge, is the same one found in digital bathroom scales. This sensor can measure up to about 50kg. This weight sensor is suitable for electronic balance and other high accuracy electronic weighing devices.

Specifications

  • Capacity kg 40-50
  • Comprehensive
  • Error mv/v 0.05
  • Output Sensitivity mv/v 1.0±0.1
  • Nonlinearity %FS 0.03
  • Repeatability %FS 0.03
  • Hysteresis %FS 0.03
  • Creep (3min)%FS 0.03
  • Zero Drift (1min)%FS 0.03
  • Temp. Effect on
  • Zero %FS/10℃ 1
  • Temp. Effect on
  • Output %FS/10℃ 0.05
  • Zero Output mV/V ±0.1
  • Input Resistance Ω 1000±20
  • Output Resistance Ω 1000±20
  • Insulation
  • Resistance MΩ ≥5000
  • Excitation Voltage V ≤10
  • Operation Temp.
  • Range ℃ 0–+50
  • Overload Capacity %FS 150

Getting started with 5o kg Body load cell

In this tutorial we are going to see how to connect the 5o kg load cell to the arduino uno using the hx711 so that we can read the weight of an object which is less than 5o kg, let’s start

Step1: Hardware required

Step2: connecting the hardware

connect the hardware as shown on the image below make sure that the connection are ok before uploading the sketch

Step3: Making the sketch and test the circuit

before uploading the sample sketch you need to have the HX711 library if not download it here. and the sample sketch you can download it from here. this sample sketch has auto calibration and manual calibration which means that the beginning of the sketch the auto calibration will occur and after you can make manual one. upload the sketch to the arduino after open your serial monitor and you will start getting values if you put on the load you will get it’s weight in Kilograms
