433MHz Wireless Remote Control, DC 12V single channel Relay Receiver RF Switch COM34, R24

Fr15,000

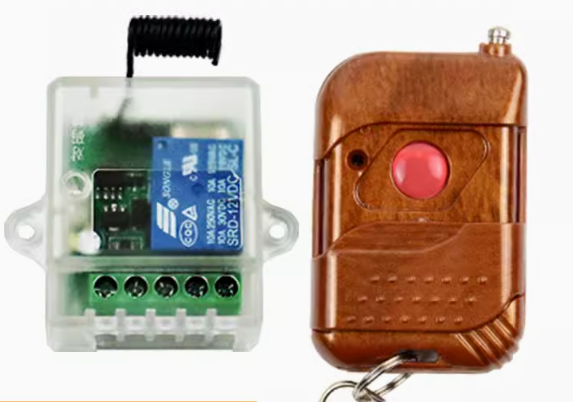

This is a universal fashion 433MHz  Wireless Remote Control which is powered by DC 12V , it is used to wiresely activate a single channel Relay through an  RF Receiver circuit.  The transmitter is a one Button Remote Control for Gate  Openers and other various telemetry applications.

In stock

SKU: CPN3784 Categories: , ,

Description

This is a universal fashion 433MHz  Wireless Remote Control which is powered by DC 12V , it is used to wiresely activate a single channel Relay through an  RF Receiver circuit.  The transmitter is a one Button Remote Control for Gate  Openers and other various telemetry applications.

Specifications Of The Transmitter

  • Model Number: KT11-4.
  • Materials: ABS.
  • Channel: One Channel.
  • Frequency: 433 MHz.
  • Modulation System: ASK.
  • Match Code Way: Fixed Code.
  • Working Voltage: DC 12V.
  • Working Current: <25mA.
  • Working RF Frequency: 433MHZ.
  • Transmitting Power: +13dbm.
  • Remote Control Distance: 50m (Please notice that the 100m distance is the ideal distance without any block and signal interfere. It would rise and fall about 10%-50% with the block and signal interference).
  • Color: Brown.
  • Package Size: 6.8 * 3.5 * 1.5cm / 2.67 * 1.37 * 0.59in.
  • Package Weight: 28g/1.0oz.

Specifications Of The Receiver

  • Model Number: KR1201B-4.
  • Modulation Mode: ASK.
  • Working Mode: Momentary, Toggle, Latching and Time Delay Mode.
  • Input Voltage: DC 10 ~ 14V.
  • RF Frequency: 433MHz.
  • Quiescent Current: 5mA .
  • Receiving Sensitivity: >97dbm.
  • Remote Control Range: >100m (Free Space).
  • Wired Connection Way: Fixed Wiring Pillar.
  • Decoding Mode: MCU Software Decoding.
  • Working Mode: Momentary, Toggle, Interlocked Mode Latching Time delay (5s ,10s ,15s ).
  • Wiring Diagram 1:
  • +V: 12V + (Input).
  • – V:  12V – (Input).
  • NO: Normal Open(Output).
  • COM: Common(Output).
  • NC: Normal Close(Output).
  • Color: Green (PCB Board), Black(Outside Shell) .
  • Package Size: 3.9 * 3.5 * 2.5cm / 1.53 * 1.18 * 0.98in.
  • Package Weight: 35g / 1.23oz.

Circuits



Package includes:
1×KR1201B-4 433MHz DC 12V 1 Relay Receiver Module
1×1 Channel RF Wireless Remote Control
