Description

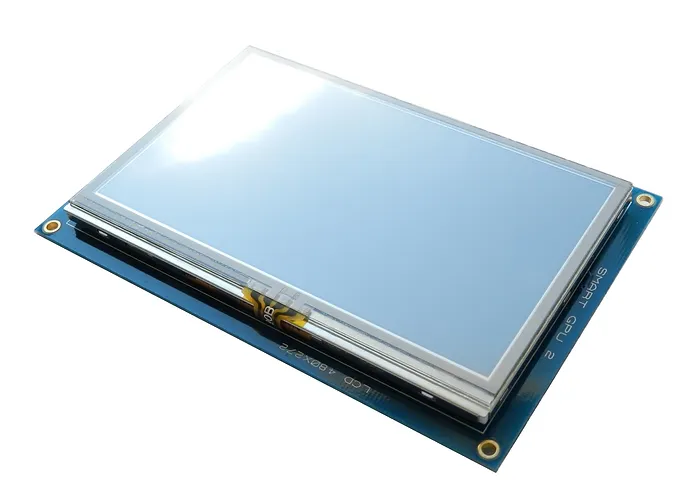

This 4.3″ TFT LCD Module can be can be easy controlled by MCU such as 8051, PIC, AVR, ARDUINU, and ARM .It can be used in any embedded systems which require display high quality colorful image. The Module used SSD1963 LCD controller .
This LCD has a superior display quality and super wide viewing angle, SSD1963 is a display controller of 1215K byte frame buffer to support up to 864 x 480 x 24bit graphics content. It also equips parallel MCU interfaces in different bus width to receive graphics data and command from MCU. Its display interface supports common RAM-less LCD driver of color depth up to 24 bit-perpixel.
Features:
- Size : 4.3”TFT
- Display Type : 16.7M TFT,Tramsmissive
- Viewing Direction : 12 O’Clock
- SSD1963 touch panel controller
- Driving IC : OTA5180A
- Blacklight : 10-Chip WHITE LED
- Module Dimensions: 114.0 * 68.0
- Panel Dimensions: 67.2 * 105.5
- Visual area (VA): 63.0 * 102.04
- Display Area (AA): 53.86 * 95.04
- Resolution: 480 * 272
- Drive voltage: 2.8V-3.3V
- Interface Type: 16 parallel
- Operating Temperature : -20 degree~ +70degree
- Storage Temperature : -30degree ~ +80degree
- 2*20 Pin 2.54mm double row pin header interface for connecting MCU.
Interface Definition:
| Number | Pin Label | Description |
| 1 | GND | Module power ground pin |
| 2 | VDD | Module power positive pin (module has integrated voltage regulator IC, so the power supply can be connected to 3.3V) |
| 3 | NC | Undefined, reserved |
| 4 | RS | LCD register / data selection control pin(high level: register, low level: data) |
| 5 | WR | LCD write control pin |
| 6 | RD | LCD read control pin |
| 7~14 | DB8~DB16 | LCD data bus DB8~DB16 |
| 15 | CS | LCD reset control pin(low level enable) |
| 16 | F_CS | Flash chip select control pin (used when using the Flash extension function, this test program is not used) |
| 17 | REST | LCD reset control pin( low level reset) |
| 18 | NC | Undefined, reserved |
| 19 | LED-A | LCD backlight power positive pin |
| 20 | NC | Undefined, reserved |
| 21~28 | DB0~DB7 | LCD data bus DB0~DB7 |
| 29 | T_CLK | Touch screen SPI bus clock control pin |
| 30 | T_CS | Touch screen IC chip select control pin(Low level enable) |
| 31 | T_DIN | Touch screen SPI bus data input pin |
| 32 | NC | Undefined, reserved |
| 33 | T_DO | Touch screen SPI bus data output pin |
| 34 | T_IRQ | Touch screen interrupt detection pin |
| 35 | SD_DO | SD card bus data output pin |
| 36 | SD_CLK | SD card clock control pin |
| 37 | SD_DIN | SD card bus data input pin |
| 38 | SD_CS | SD card selection control pin |
| 39~40 | NC | Undefined, reserved |
