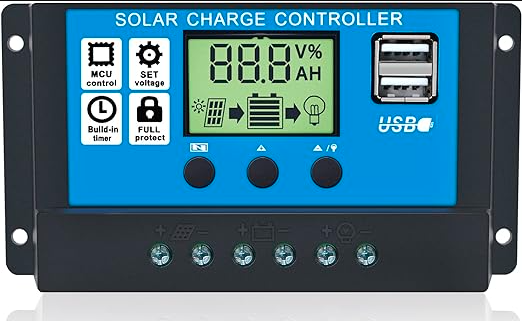

12V 24V 10A Automatic Solar Controller COM51, R33

Fr12,500

In stock

SKU: EQP24509 Categories: ,

Description

This is a 10A  Automatic Solar Controller which is meant for off-grid solar systems, especially solar light systems and protects the battery from being over charged by the solar module and over discharged by the loads. The
charging process has been optimized for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes or system faults.

Features

  • Charge for 12V lead acid battery
  • High efficient, energy-saving, safe
  • Light Control With Time Delay
  • 4-Stage charge with PWM output

Specifications

  • Display: LCD liquid crystal display
  • Size: 133.5*70*35mm
  • Float voltage: 13.7V(default value,adjustable)
  • Discharge cut-off voltage: 10.7V(default value,adjustable)
  • Discharge recovery voltage: 12.6V(default value,adjustable)
  • USB output: 5V/2A
  • Standby current: <10mA
  • Working temperature: -35~+60℃
  • Weight: 165g



Getting along with the Solar Controller

Connection procedures

The connection should be carried out carefully following the preset procedures in order to avoid damaging the battery or the Controller as stated in the following picture:







As labelled on the controller the polarities should never be reversed. Otherwise the battery could be caused short-circuit. Below is the description of the right connections and possible signs from the controller that can hint the user in any situation going on with controller or the battery.











And here is the the way to deal with the controller through its controls













It can also supply different appliances including AC loads simultaneously as shown below:
