Description

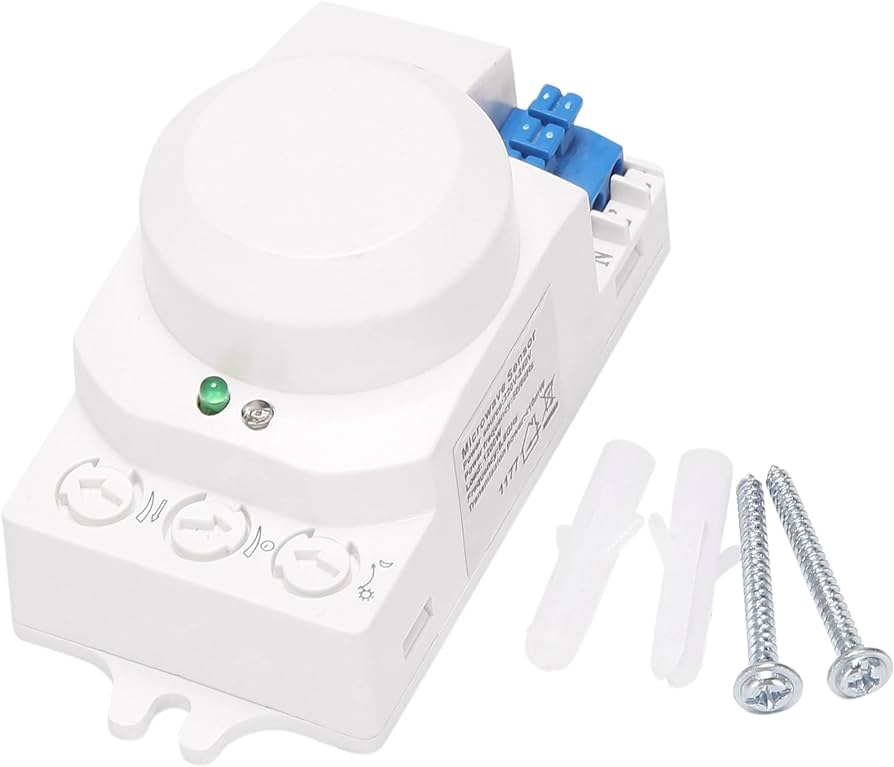

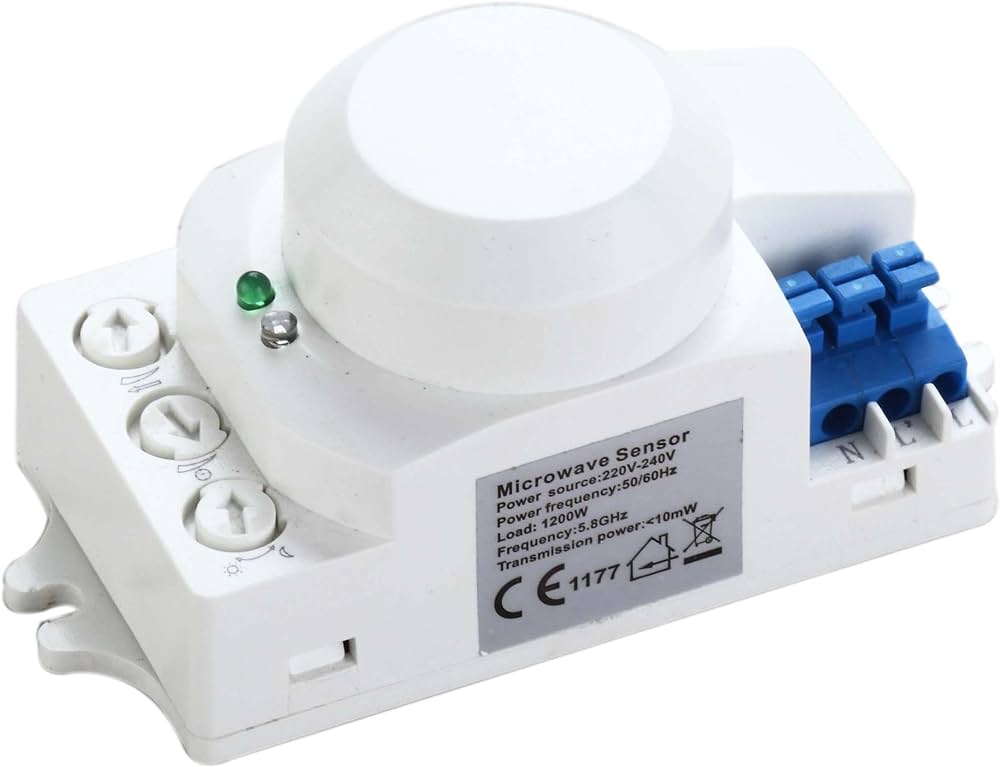

The 5.8GHz Microwave Radar Sensor Body Motion HF Detector Light Switch is an active motion detector that emits high-frequency electro-magnetic wave and receives their echo. The sensor detects the change in echo from even the slightest movement in its detection zone, which is far more sensitive than infrared sensor. A microprocessor then triggers the switch. Delay time, detection distance and light sensor can be easily adjusted to meet your requirements. It is commonly used to control lighting and extract ventilation, helping to ensure that lights and fans are not left on.
Features:
- Operating voltage : 220-240V/AC
- Maximum Load: 1200W
- Detection area : 2-10m(radii.), Adjustable
- Time setting : 10sec-30min
- Light control : 2~2000lux
- Power Consumption : Approx. 0.5W
- Microwave frequency : 5.8GHz +/-75MHz CW Radar, ISM Band
- Transmission power :<0.2mW
- Detection is possible through doors, panes of glass or thin walls
- Far more sensitive than infrared sensor, highly dependable
- Built-in light sensor and LED indicator
- Easy to install to ceiling or other indoor places
- Detection angle: 360°
Note:
The high-frequency output of this sensor is <0.2mW that is just one 5000th of the transmission power of a mobile phone or the output of a microwave oven.
